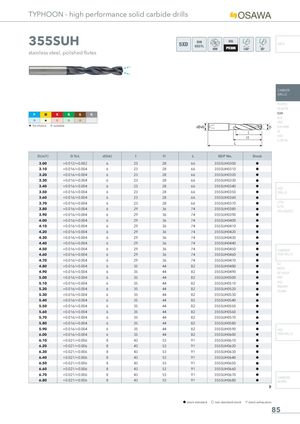

TYPHOON - high performance solid carbide drills 355SUH 5XD DIN6537L INFO stainless steel, polished flutes CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH I H I I I HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA D(m7) D Tol. d(h6) l l1 L EDP No. Stock 3.00 +0.012/+0.002 6 23 28 66 355SUH0300 h 3.10 +0.016/+0.004 6 23 28 66 355SUH0310 h 3.20 +0.016/+0.004 6 23 28 66 355SUH0320 h 3.30 +0.016/+0.004 6 23 28 66 355SUH0330 h 3.40 +0.016/+0.004 6 23 28 66 355SUH0340 h HSS 3.50 +0.016/+0.004 6 23 28 66 355SUH0350 h DRILLS 3.60 +0.016/+0.004 6 23 28 66 355SUH0360 h 3.70 +0.016/+0.004 6 23 28 66 355SUH0370 h LFTA 3.80 +0.016/+0.004 6 29 36 74 355SUH0380 h SUTAHSS-HSS/CO 3.90 +0.016/+0.004 6 29 36 74 355SUH0390 h 4.00 +0.016/+0.004 6 29 36 74 355SUH0400 h 4.10 +0.016/+0.004 6 29 36 74 355SUH0410 h 4.20 +0.016/+0.004 6 29 36 74 355SUH0420 h 4.30 +0.016/+0.004 6 29 36 74 355SUH0430 h 4.40 +0.016/+0.004 6 29 36 74 355SUH0440 h 4.50 +0.016/+0.004 6 29 36 74 355SUH0450 h CARBIDE 4.60 +0.016/+0.004 6 29 36 74 355SUH0460 h END-MILLS 4.70 +0.016/+0.004 6 29 36 74 355SUH0470 h 4.80 +0.016/+0.004 6 35 44 82 355SUH0480 h G2 MDTA 4.90 +0.016/+0.004 6 35 44 82 355SUH0490 h HF VH/UP 5.00 +0.016/+0.004 6 35 44 82 355SUH0500 h MEF 5.10 +0.016/+0.004 6 35 44 82 355SUH0510 h ALU 5.20 +0.016/+0.004 6 35 44 82 355SUH0520 h MEX/MHUH/MH 5.30 +0.016/+0.004 6 35 44 82 355SUH0530 h 5.40 +0.016/+0.004 6 35 44 82 355SUH0540 h 5.50 +0.016/+0.004 6 35 44 82 355SUH0550 h 5.60 +0.016/+0.004 6 35 44 82 355SUH0560 h 5.70 +0.016/+0.004 6 35 44 82 355SUH0570 h 5.80 +0.016/+0.004 6 35 44 82 355SUH0580 h 5.90 +0.016/+0.004 6 35 44 82 355SUH0590 h HSS 6.00 +0.016/+0.004 6 35 44 82 355SUH0600 h END-MILLS 6.10 +0.021/+0.006 8 43 53 91 355SUH0610 h 6.20 +0.021/+0.006 8 43 53 91 355SUH0620 h 6.30 +0.021/+0.006 8 43 53 91 355SUH0630 h 6.40 +0.021/+0.006 8 43 53 91 355SUH0640 h 6.50 +0.021/+0.006 8 43 53 91 355SUH0650 h 6.60 +0.021/+0.006 8 43 53 91 355SUH0660 h 6.70 +0.021/+0.006 8 43 53 91 355SUH0670 h 6.80 +0.021/+0.006 8 43 53 91 355SUH0680 h CARBIDEBURRS h stock standard f non-standard stock m stock exhaustion 85
