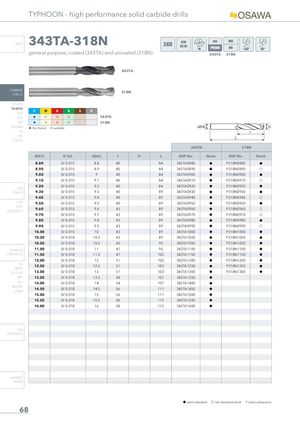

TYPHOON - high performance solid carbide drills INFO 343TA-318N 3XD DIN6539 general purpose, coated (343TA) and uncoated (318N) 343TA 318N 343TA CARBIDEDRILLS 318N PU-HPU TA-4HTA P M K N S H SUH ALH H I I I 343TA HRC H I I I 318N SUH MINI H 1st choice I suitable HL HSD C-SD-TA 343TA 318N D(h7) D Tol. d(h6) l l1 L EDP No. Stock EDP No. Stock 8.80 0/-0.015 8.8 40 84 343TA0880 h P318N0880 h 8.90 0/-0.015 8.9 40 84 343TA0890 h P318N0890 f 9.00 0/-0.015 9 40 84 343TA0900 h P318N0900 h 9.10 0/-0.015 9.1 40 84 343TA0910 h P318N0910 f 9.20 0/-0.015 9.2 40 84 343TA0920 h P318N0920 h HSS DRILLS 9.30 0/-0.015 9.3 40 89 343TA0930 h P318N0930 h 9.40 0/-0.015 9.4 40 89 343TA0940 h P318N0940 f LFTA 9.50 0/-0.015 9.5 40 89 343TA0950 h P318N0950 h SUTAHSS-HSS/CO9.60 0/-0.015 9.6 43 89 343TA0960 h P318N0960 f 9.70 0/-0.015 9.7 43 89 343TA0970 h P318N0970 f 9.80 0/-0.015 9.8 43 89 343TA0980 h P318N0980 h 9.90 0/-0.015 9.9 43 89 343TA0990 h P318N0990 f 10.00 0/-0.015 10 43 89 343TA1000 h P318N1000 h 10.20 0/-0.018 10.2 43 89 343TA1020 h P318N1020 h 10.50 0/-0.018 10.5 43 95 343TA1050 h P318N1050 h CARBIDE 11.00 0/-0.018 11 47 95 343TA1100 h P318N1100 h END-MILLS 11.50 0/-0.018 11.5 47 102 343TA1150 h P318N1150 h 12.00 0/-0.018 12 51 102 343TA1200 h P318N1200 h G2 12.50 0/-0.018 12.5 51 103 343TA1250 h P318N1250 h MDTA HF VH/UP 13.00 0/-0.018 13 51 103 343TA1300 h P318N1300 h MEF 13.50 0/-0.018 13.5 54 107 343TA1350 h ALU 14.00 0/-0.018 14 54 107 343TA1400 h MEX/MHUH/MH 14.50 0/-0.018 14.5 56 111 343TA1450 h 15.00 0/-0.018 15 56 111 343TA1500 h 15.50 0/-0.018 15.5 58 115 343TA1550 h 16.00 0/-0.018 16 58 115 343TA1600 h HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 68
