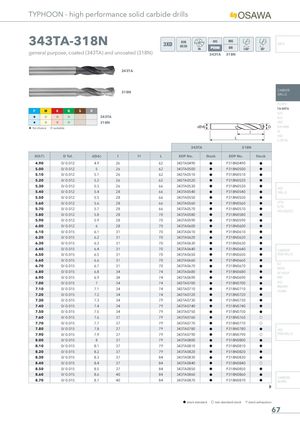

TYPHOON - high performance solid carbide drills

343TA-318N

3XD DIN 6539 INFO

general purpose, coated (343TA) and uncoated (318N)

343TA 318N

343TA

CARBIDE 318N DRILLS

P	M	K N	S	H
H	I	I I			343TA
H	I	I I			318N
H1st ch	oice	Isuitable

PU-HPU TA-4HTA SUH ALH H 1st choice I suitable SUH MINI HL HSD C-SD-TA

					343TA		318N
D(h7)	D Tol.	d(h6)	l	l1 L	EDP No.	Stock	EDP No.	Stock
4.90	0/-0.012	4.9	26	62	343TA0490	h	P318N0490	h
5.00	0/-0.012	5	26	62	343TA0500	h	P318N0500	h
5.10	0/-0.012	5.1	26	62	343TA0510	h	P318N0510	h
5.20	0/-0.012	5.2	26	62	343TA0520	h	P318N0520	h
5.30	0/-0.012	5.3	26	66	343TA0530	h	P318N0530	h	HSS
5.40	0/-0.012	5.4	28	66	343TA0540	h	P318N0540	h	DRILLS
5.50	0/-0.012	5.5	28	66	343TA0550	h	P318N0550	h
5.60	0/-0.012	5.6	28	66	343TA0560	h	P318N0560	h	LFTA
5.70	0/-0.012	5.7	28	66	343TA0570	h	P318N0570	h	SUTA HSS-HSS/CO
5.80	0/-0.012	5.8	28	70	343TA0580	h	P318N0580	h
5.90	0/-0.012	5.9	28	70	343TA0590	h	P318N0590	h
6.00	0/-0.012	6	28	70	343TA0600	h	P318N0600	h
6.10	0/-0.015	6.1	31	70	343TA0610	h	P318N0610	h
6.20	0/-0.015	6.2	31	70	343TA0620	h	P318N0620	h
6.30	0/-0.015	6.3	31	70	343TA0630	h	P318N0630	h
6.40	0/-0.015	6.4	31	70	343TA0640	h	P318N0640	h	CARBIDE
6.50	0/-0.015	6.5	31	70	343TA0650	h	P318N0650	h	END-MILLS
6.60	0/-0.015	6.6	31	70	343TA0660	h	P318N0660	h
6.70	0/-0.015	6.7	31	70	343TA0670	h	P318N0670	h	G2 MDTA
6.80	0/-0.015	6.8	34	74	343TA0680	h	P318N0680	h	HF VH/UP
6.90	0/-0.015	6.9	34	74	343TA0690	h	P318N0690	h	MEF
7.00	0/-0.015	7	34	74	343TA0700	h	P318N0700	h	ALU
7.10	0/-0.015	7.1	34	74	343TA0710	h	P318N0710	h	MEX/MH UH/MH
7.20	0/-0.015	7.2	34	74	343TA0720	h	P318N0720	h
7.30	0/-0.015	7.3	34	79	343TA0730	h	P318N0730	h
7.40	0/-0.015	7.4	34	79	343TA0740	h	P318N0740	h
7.50	0/-0.015	7.5	34	79	343TA0750	h	P318N0750	h
7.60	0/-0.015	7.6	37	79	343TA0760	h	P318N0760	f
7.70	0/-0.015	7.7	37	79	343TA0770	h	P318N0770	f
7.80	0/-0.015	7.8	37	79	343TA0780	h	P318N0780	h	HSS
7.90	0/-0.015	7.9	37	79	343TA0790	h	P318N0790	f	END-MILLS
8.00	0/-0.015	8	37	79	343TA0800	h	P318N0800	h
8.10	0/-0.015	8.1	37	79	343TA0810	h	P318N0810	h
8.20	0/-0.015	8.2	37	79	343TA0820	h	P318N0820	h
8.30	0/-0.015	8.3	37	84	343TA0830	h	P318N0830	h
8.40	0/-0.015	8.4	37	84	343TA0840	h	P318N0840	f
8.50	0/-0.015	8.5	37	84	343TA0850	h	P318N0850	h
8.60	0/-0.015	8.6	40	84	343TA0860	h	P318N0860	h
8.70	0/-0.015	8.7	40	84	343TA0870	h	P318N0870	h	CARBIDE BURRS
