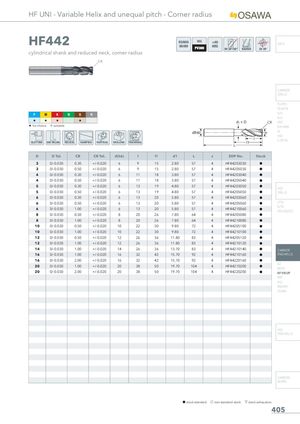

Общий каталог Osawa 2021 - страница 406

Общий каталог Osawa 2018

Общий каталог Osawa 2018

HF UNI - Variable Helix and unequal pitch - Corner radius

HF442

OSAWA NORM INFO

cylindrical shank and reduced neck, corner radius

CR

P	M	K	N	S	H
H	H	H		H

H 1st choice I suitable

1.5D

SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL

DRILLING TROCHOIDAL

CR

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

D	D Tol.	CR	CR Tol.	d(h6)	l	l1	d1	L	z	EDP No.	Stock
3	0/-0.030	0.30	+/-0.020	6	9	15	2.80	57	4	HF44203030	h
3	0/-0.030	0.50	+/-0.020	6	9	15	2.80	57	4	HF44205030	h
4	0/-0.030	0.30	+/-0.020	6	11	18	3.80	57	4	HF44203040	h
4	0/-0.030	0.50	+/-0.020	6	11	18	3.80	57	4	HF44205040	h
5	0/-0.030	0.30	+/-0.020	6	13	19	4.80	57	4	HF44203050	h
5	0/-0.030	0.50	+/-0.020	6	13	19	4.80	57	4	HF44205050	h
6	0/-0.030	0.30	+/-0.020	6	13	20	5.80	57	4	HF44203060	h
6	0/-0.030	0.50	+/-0.020	6	13	20	5.80	57	4	HF44205060	h
6	0/-0.030	1.00	+/-0.020	6	13	20	5.80	57	4	HF44210060	h
8	0/-0.030	0.50	+/-0.020	8	20	26	7.80	64	4	HF44205080	h
8	0/-0.030	1.00	+/-0.020	8	20	26	7.80	64	4	HF44210080	h
10	0/-0.030	0.50	+/-0.020	10	22	30	9.80	72	4	HF44205100	h
10	0/-0.030	1.00	+/-0.020	10	22	30	9.80	72	4	HF44210100	h
12	0/-0.030	0.50	+/-0.020	12	26	36	11.80	83	4	HF44205120	h
12	0/-0.030	1.00	+/-0.020	12	26	36	11.80	83	4	HF44210120	h
14	0/-0.030	1.00	+/-0.020	14	26	36	13.70	83	4	HF44210140	h
16	0/-0.030	1.00	+/-0.020	16	32	42	15.70	92	4	HF44210160	h
16	0/-0.030	2.00	+/-0.020	16	32	42	15.70	92	4	HF44220160	h
20	0/-0.030	1.00	+/-0.020	20	38	50	19.70	104	4	HF44210200	h
20	0/-0.030	2.00	+/-0.020	20	38	50	19.70	104	4	HF44220200	h

HSS DRILLS

LFTA SUTA HSS-HSS/CO

CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
