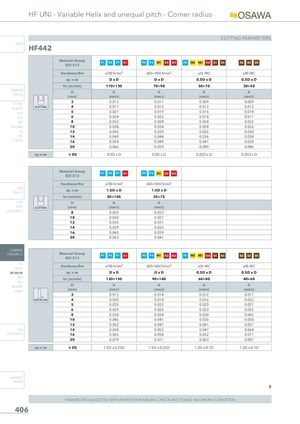

Общий каталог Osawa 2021 - страница 407
Навигация
Общий каталог Osawa 2018
HF UNI - Variable Helix and unequal pitch - Corner radius
CUTTING PARAMETERS
INFO
HF442
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.013 | 0.011 | 0.009 | 0.009 |
PU-HPU
SLOTTING 4 0.017 0.015 0.012 0.012
TA-4HTA
5 0.021 0.019 0.016 0.014
SUH
| ALH | 6 | 0.024 | 0.022 | 0.018 | 0.017 | |
| HRC | 8 | 0.032 | 0.028 | 0.024 | 0.022 | |
| SUH MINI | 10 | 0.038 | 0.034 | 0.028 | 0.026 | |
| HL | 12 | 0.043 | 0.039 | 0.032 | 0.030 | |
| HSD | 14 | 0.049 | 0.044 | 0.036 | 0.034 | |
| C-SD-TA | 16 | 0.054 | 0.049 | 0.041 | 0.038 | |
| 20 | 0.066 | 0.059 | 0.049 | 0.046 | ||
| ap x ae ≤ D5 | 0.5D x D | 0.5D x D | 0.25D x D | 0.25D x D |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
HSS
ap x ae 1.5D x D 1.5D x D
DRILLS
Vc (m/min) 85÷105 55÷75
| LFTA | D | fz | fz |
| SUTA | SLOTTING (mm) | (mm/z) | (mm/z) |
| HSS-HSS/CO | 8 | 0.025 | 0.023 |
| 10 | 0.030 | 0.027 | |
| 12 | 0.035 | 0.031 | |
| 14 | 0.039 | 0.035 | |
| 16 | 0.043 | 0.039 | |
| 20 | 0.053 | 0.047 |
CARBIDE
END-MILLS Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513 G2
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC
MDTA
HF VH/UP ap x ae D x D D x D 0.5D x D 0.5D x D
MEF
Vc (m/min) 130÷150 90÷140 60÷80 40÷60
ALU
| MEX/MH | D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
UH/MH
| 3 | 0.015 | 0.014 | 0.012 | 0.017 |
| SIDE MILLING 4 | 0.020 | 0.018 | 0.016 | 0.022 |
| 5 | 0.025 | 0.022 | 0.020 | 0.027 |
| 6 | 0.029 | 0.026 | 0.023 | 0.032 |
| 8 | 0.038 | 0.034 | 0.030 | 0.042 |
| 10 | 0.045 | 0.041 | 0.036 | 0.050 |
| 12 | 0.052 | 0.047 | 0.041 | 0.057 |
| HSS 14 | 0.058 | 0.052 | 0.047 | 0.064 |
| END-MILLS 16 | 0.065 | 0.058 | 0.052 | 0.071 |
| 20 | 0.079 | 0.071 | 0.063 | 0.087 |
ap x ae ≤ D5 1.5D x 0.25D 1.5D x 0.25D 1.2D x 0.1D 1.2D x 0.1D
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
