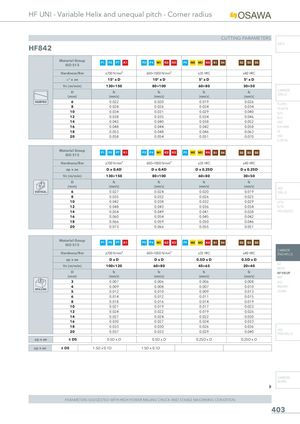

HF UNI - Variable Helix and unequal pitch - Corner radius
CUTTING PARAMETERS
INFO
HF842
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ° x ae | 15° x D | 10° x D | 5° x D | 5° x D | ||
| Vc (m/min) | 130÷150 | 80÷100 | 60÷80 | 30÷50 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) | |
| RAMPING | 6 | 0.022 | 0.020 | 0.019 | 0.026 |
PU-HPU
8 0.028 0.026 0.024 0.034
TA-4HTA
10 0.034 0.031 0.029 0.040
SUH
| 12 | 0.038 | 0.035 | 0.034 | 0.046 | ALH |
| 14 | 0.043 | 0.040 | 0.038 | 0.052 | HRC |
| 16 | 0.048 | 0.044 | 0.042 | 0.058 | SUH MINI |
| 18 | 0.053 | 0.048 | 0.046 | 0.063 | HL |
| 20 | 0.058 | 0.054 | 0.051 | 0.070 | HSD |
C-SD-TA
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x 0.4D | D x 0.4D | D x 0.25D | D x 0.25D | ||
| Vc (m/min) | 130÷150 | 80÷100 | 60÷80 | 30÷50 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
HSS
| VERTICAL 6 | 0.027 | 0.024 | 0.020 | 0.019 | DRILLS |
| 8 | 0.035 | 0.032 | 0.026 | 0.025 | |
| 10 | 0.042 | 0.038 | 0.032 | 0.029 | LFTA |
| 12 | 0.048 | 0.043 | 0.036 | 0.034 | SUTA |
| 14 | 0.054 | 0.049 | 0.041 | 0.038 | HSS-HSS/CO |
| 16 | 0.060 | 0.054 | 0.045 | 0.042 | |
| 18 | 0.066 | 0.059 | 0.050 | 0.046 | |
| 20 | 0.073 | 0.066 | 0.055 | 0.051 |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513 CARBIDE
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | END-MILLS | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D |
G2
Vc (m/min) 100÷120 60÷80 45÷65 20÷40
MDTA
| D | fz | fz | fz | fz | HF VH/UP |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) | MEF |
| 3 | 0.007 | 0.006 | 0.006 | 0.008 | ALU |
| 4 | 0.009 | 0.008 | 0.007 | 0.010 | MEX/MH |
DRILLING
| 5 | 0.012 | 0.010 | 0.009 | UH/MH 0.013 |
| 6 | 0.014 | 0.012 | 0.011 | 0.015 |
| 8 | 0.018 | 0.016 | 0.014 | 0.019 |
| 10 | 0.021 | 0.019 | 0.017 | 0.023 |
| 12 | 0.024 | 0.022 | 0.019 | 0.026 |
| 14 | 0.027 | 0.024 | 0.022 | 0.030 |
| 16 | 0.030 | 0.027 | 0.024 | 0.033 |
| 18 | 0.033 | 0.030 | 0.026 | 0.036 |
HSS
20 0.037 0.033 0.029 0.040
END-MILLS
ap x ae ≤ D5 0.5D x D 0.5D x D 0.25D x D 0.25D x D
ap x ae ≤ D5 1.5D x 0.1D 1.5D x 0.1D
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
