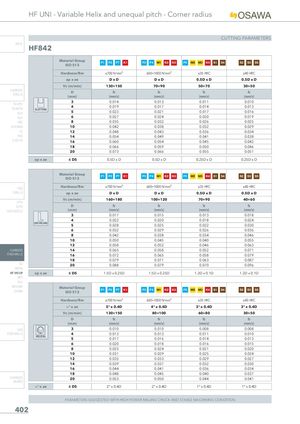

HF UNI - Variable Helix and unequal pitch - Corner radius
CUTTING PARAMETERS
INFO
HF842
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 130÷150 | 70÷90 | 50÷70 | 30÷50 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.014 | 0.013 | 0.011 | 0.010 |
PU-HPU
4 0.019 0.017 0.014 0.013
TA-4HTA SLOTTING
5 0.023 0.021 0.017 0.016
SUH
| ALH | 6 | 0.027 | 0.024 | 0.020 | 0.019 | |
| HRC | 8 | 0.035 | 0.032 | 0.026 | 0.025 | |
| SUH MINI | 10 | 0.042 | 0.038 | 0.032 | 0.029 | |
| HL | 12 | 0.048 | 0.043 | 0.036 | 0.034 | |
| HSD | 14 | 0.054 | 0.049 | 0.041 | 0.038 | |
| C-SD-TA | 16 | 0.060 | 0.054 | 0.045 | 0.042 | |
| 18 | 0.066 | 0.059 | 0.050 | 0.046 | ||
| 20 | 0.073 | 0.066 | 0.055 | 0.051 | ||
| ap x ae ≤ D5 | 0.5D x D | 0.5D x D | 0.25D x D | 0.25D x D |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ≤40 HRC
HSS
| DRILLS | ap x ae | D x D | D x D | 0.5D x D | 0.5D x D |
| Vc (m/min) | 160÷180 | 100÷120 | 70÷90 | 40÷60 |
LFTA
| SUTA | D | fz | fz | fz | fz | |
| HSS-HSS/CO | (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) | |
| 3 | 0.017 | 0.015 | 0.013 | 0.018 | ||
| 4 | 0.022 | 0.020 | 0.018 | 0.024 |
SIDE MILLING
| 5 | 0.028 | 0.025 | 0.022 | 0.030 | |
| 6 | 0.032 | 0.029 | 0.026 | 0.036 | |
| 8 | 0.042 | 0.038 | 0.034 | 0.046 | |
| 10 | 0.050 | 0.045 | 0.040 | 0.055 | |
| 12 | 0.058 | 0.052 | 0.046 | 0.063 | |
| CARBIDE | 14 | 0.065 | 0.058 | 0.052 | 0.071 |
| END-MILLS | 16 | 0.072 | 0.065 | 0.058 | 0.079 |
| 18 | 0.079 | 0.071 | 0.063 | 0.087 | |
| G2 20 | 0.088 | 0.079 | 0.070 | 0.096 |
MDTA
HF VH/UP ap x ae ≤ D5 1.5D x 0.25D 1.5D x 0.25D 1.2D x 0.1D 1.2D x 0.1D
MEF ALU MEX/MH Material Group
P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
UH/MH ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ° x ae | 5° x 0.4D | 4° x 0.4D | 3° x 0.4D | 3° x 0.4D | ||
| Vc (m/min) | 130÷150 | 80÷100 | 60÷80 | 30÷50 |
| D | fz | fz | fz | fz | ||
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) | ||
| HSS | 3 | 0.010 | 0.010 | 0.008 | 0.008 | |
| END-MILLS | 4 | 0.013 | 0.013 | 0.011 | 0.010 |
HELICAL
| 5 | 0.017 | 0.016 | 0.014 | 0.013 |
| 6 | 0.020 | 0.018 | 0.016 | 0.015 |
| 8 | 0.025 | 0.024 | 0.021 | 0.020 |
| 10 | 0.031 | 0.029 | 0.025 | 0.024 |
| 12 | 0.035 | 0.033 | 0.029 | 0.027 |
| 14 | 0.039 | 0.037 | 0.032 | 0.030 |
| 16 | 0.044 | 0.041 | 0.036 | 0.034 |
| 18 | 0.048 | 0.045 | 0.040 | 0.037 |
| CARBIDE 20 | 0.053 | 0.050 | 0.044 | 0.041 |
BURRS
° x ae ≤ D5 2° x 0.4D 2° x 0.4D 1° x 0.4D 1° x 0.4D
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
