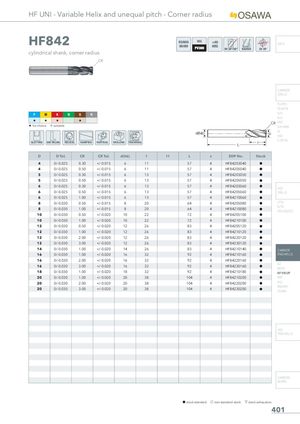

HF UNI - Variable Helix and unequal pitch - Corner radius

HF842

OSAWA NORM INFO

cylindrical shank, corner radius

CR

P	M	K	N	S	H
H	H	H		H

H 1st choice I suitable

SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL

DRILLING TROCHOIDAL

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH CR HRC SUH MINI HL HSD C-SD-TA

D	D Tol.	CR	CR Tol.	d(h6)	l	l1 L	z	EDP No.	Stock
4	0/-0.025	0.30	+/-0.015	6	11	57	4	HF84203040	h
4	0/-0.025	0.50	+/-0.015	6	11	57	4	HF84205040	h
5	0/-0.025	0.30	+/-0.015	6	13	57	4	HF84203050	h
5	0/-0.025	0.50	+/-0.015	6	13	57	4	HF84205050	h
6	0/-0.025	0.30	+/-0.015	6	13	57	4	HF84203060	h

HSS

6	0/-0.025	0.50	+/-0.015	6	13	57	4	HF84205060	h	DRILLS
6	0/-0.025	1.00	+/-0.015	6	13	57	4	HF84210060	h
8	0/-0.030	0.50	+/-0.015	8	20	64	4	HF84205080	h	LFTA

SUTA

8 0/-0.030 1.00 +/-0.015 8 20 64 4 HF84210080 h

HSS-HSS/CO

10	0/-0.030	0.50	+/-0.020	10	22	72	4	HF84205100	h
10	0/-0.030	1.00	+/-0.020	10	22	72	4	HF84210100	h
12	0/-0.030	0.50	+/-0.020	12	26	83	4	HF84205120	h
12	0/-0.030	1.00	+/-0.020	12	26	83	4	HF84210120	h
12	0/-0.030	2.00	+/-0.020	12	26	83	4	HF84220120	h
12	0/-0.030	3.00	+/-0.020	12	26	83	4	HF84230120	h
14	0/-0.030	1.00	+/-0.020	14	26	83	4	HF84210140	h	CARBIDE
16	0/-0.030	1.00	+/-0.020	16	32	92	4	HF84210160	h	END-MILLS
16	0/-0.030	2.00	+/-0.020	16	32	92	4	HF84220160	h

G2

16 0/-0.030 3.00 +/-0.020 16 32 92 4 HF84230160 h

MDTA

18	0/-0.030	1.00	+/-0.020	18	32	92	4	HF84210180	h	HF VH/UP
20	0/-0.030	1.00	+/-0.020	20	38	104	4	HF84210200	h	MEF
20	0/-0.030	2.00	+/-0.020	20	38	104	4	HF84220200	h	ALU

MEX/MH

20 0/-0.030 3.00 +/-0.020 20 38 104 4 HF84230200 h

UH/MH

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
