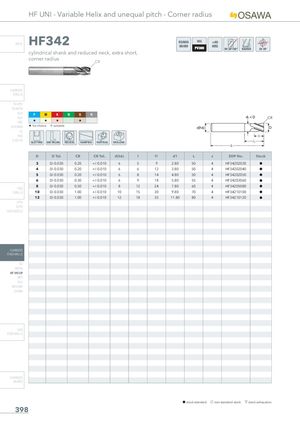

HF UNI - Variable Helix and unequal pitch - Corner radius
HF342
OSAWA INFO NORM cylindrical shank and reduced neck, extra short,
corner radius
CR
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
P M K N S H
CR
H H H H
H 1st choice I suitable
SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL DRILLING
HSS DRILLS
LFTA SUTA HSS-HSS/CO
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 3 | 0/-0.030 | 0.20 | +/-0.010 | 6 | 5 | 9 | 2.80 | 50 | 4 | HF34202030 | h |
| 4 | 0/-0.030 | 0.20 | +/-0.010 | 6 | 6 | 12 | 3.80 | 50 | 4 | HF34202040 | h |
| 5 | 0/-0.030 | 0.20 | +/-0.010 | 6 | 8 | 14 | 4.80 | 50 | 4 | HF34202050 | h |
| 6 | 0/-0.030 | 0.30 | +/-0.010 | 6 | 9 | 18 | 5.80 | 55 | 4 | HF34203060 | h |
| 8 | 0/-0.030 | 0.50 | +/-0.010 | 8 | 12 | 24 | 7.80 | 60 | 4 | HF34205080 | h |
| 10 | 0/-0.030 | 1.00 | +/-0.010 | 10 | 15 | 30 | 9.80 | 70 | 4 | HF34210100 | h |
| 12 | 0/-0.030 | 1.00 | +/-0.010 | 12 | 18 | 35 | 11.80 | 80 | 4 | HF34210120 | h |
CARBIDE END-MILLS
G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HSS END-MILLS
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
