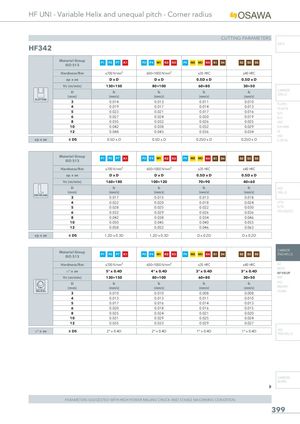

HF UNI - Variable Helix and unequal pitch - Corner radius

HF342

SLOTTING

ap x ae

CUTTING PARAMETERS

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5

ISO 513

Hardness/Rm		≤700 N/mm²	600÷1000 N/mm²		≤35 HRC	≤40 HRC
	ap x ae	D x D		D x D	0.5D x D	0.5D x D
	Vc (m/min)	130÷150		80÷100	60÷80	30÷50

D	fz	fz	fz	fz
(mm)	(mm/z)	(mm/z)	(mm/z)	(mm/z)
3	0.014	0.013	0.011	0.010
4	0.019	0.017	0.014	0.013
5	0.023	0.021	0.017	0.016
6	0.027	0.024	0.020	0.019
8	0.035	0.032	0.026	0.025
10	0.042	0.038	0.032	0.029
12	0.048	0.043	0.036	0.034

≤ D5 0.5D x D 0.5D x D 0.25D x D 0.25D x D

INFO

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5

ISO 513

Hardness/Rm		≤700 N/mm²	600÷1000 N/mm²		≤35 HRC	≤40 HRC
	ap x ae	D x D		D x D	0.5D x D	0.5D x D
	Vc (m/min)	160÷180		100÷120	70÷90	40÷60

D	fz	fz	fz	fz	HSS
(mm)	(mm/z)	(mm/z)	(mm/z)	(mm/z)	DRILLS

SIDE MILLING

3	0.017	0.015	0.013	0.018
4	0.022	0.020	0.018	0.024	LFTA
5	0.028	0.025	0.022	0.030	SUTA
6	0.032	0.029	0.026	0.036	HSS-HSS/CO
8	0.042	0.038	0.034	0.046
10	0.050	0.045	0.040	0.055
12	0.058	0.052	0.046	0.063
ap x ae ≤ D5	1.2D x 0.3D	1.2D x 0.3D	D x 0.2D	D x 0.2D

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5

ISO 513

Hardness/Rm		≤700 N/mm²	600÷1000 N/mm²		≤35 HRC	≤40 HRC
	° x ae	5° x 0.4D		4° x 0.4D	3° x 0.4D	3° x 0.4D
	Vc (m/min)	130÷150		80÷100	60÷80	30÷50

D	fz	fz	fz	fz
(mm)	(mm/z)	(mm/z)	(mm/z)	(mm/z)

HELICAL

3	0.010	0.010	0.008	0.008
4	0.013	0.013	0.011	0.010
5	0.017	0.016	0.014	0.013
6	0.020	0.018	0.016	0.015
8	0.025	0.024	0.021	0.020
10	0.031	0.029	0.025	0.024
12	0.035	0.033	0.029	0.027
° x ae ≤ D5	2° x 0.4D	2° x 0.4D	1° x 0.4D	1° x 0.4D

CARBIDE END-MILLS

G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH

HSS END-MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
