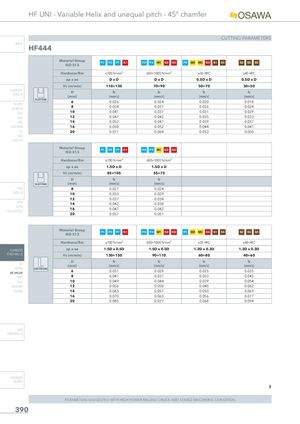

HF UNI - Variable Helix and unequal pitch - 45° chamfer

INFO

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

HSS DRILLS

LFTA SUTA HSS-HSS/CO

HF444

SLOTTING

SLOTTING

CUTTING PARAMETERS

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5

ISO 513

Hardness/Rm		≤700 N/mm²	600÷1000 N/mm²		≤35 HRC	≤40 HRC
	ap x ae	D x D		D x D	0.5D x D	0.5D x D
	Vc (m/min)	110÷130		70÷90	50÷70	30÷50

D	fz	fz	fz	fz
(mm)	(mm/z)	(mm/z)	(mm/z)	(mm/z)
6	0.026	0.024	0.020	0.018
8	0.034	0.031	0.026	0.024
10	0.041	0.037	0.031	0.029
12	0.047	0.042	0.035	0.033
14	0.052	0.047	0.039	0.037
16	0.058	0.052	0.044	0.041
20	0.071	0.064	0.053	0.050

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3

ISO 513

Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²

ap x ae	1.5D x D	1.5D x D
Vc (m/min)	85÷105	55÷75

D	fz	fz
(mm)	(mm/z)	(mm/z)
8	0.027	0.024
10	0.033	0.029
12	0.037	0.034
14	0.042	0.038
16	0.047	0.042
20	0.057	0.051

Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5

ISO 513

	Hardness/Rm		≤700 N/mm²	600÷1000 N/mm²			≤35 HRC		≤40 HRC
CARBIDE		ap x ae	1.5D x 0.5D		1.5D x 0.5D	1.2D x 0.3D		1.2D x 0.3D
END-MILLS		Vc (m/min)	130÷150		90÷110		60÷80		40÷60

D fz fz fz fz

G2

(mm) (mm/z) (mm/z) (mm/z) (mm/z)

MDTA SIDE MILLING

6 0.031 0.028 0.025 0.035

HF VH/UP

MEF	8	0.041	0.037	0.033	0.045
ALU	10	0.049	0.044	0.039	0.054
MEX/MH	12	0.056	0.050	0.045	0.062
UH/MH	14	0.063	0.057	0.050	0.069
	16	0.070	0.063	0.056	0.077
	20	0.085	0.077	0.068	0.094

HSS END-MILLS

CARBIDE BURRS

PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
