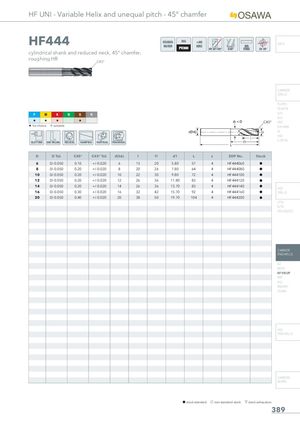

HF UNI - Variable Helix and unequal pitch - 45° chamfer
HF444
OSAWA NORM INFO cylindrical shank and reduced neck, 45° chamfer,
roughing HR
C45°
| P | M | K | N | S | H |
| H | H | H | H |
H 1st choice I suitable
1.5D
SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL TROCHOIDAL
C45°
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
| D | D Tol. | C45° | C45° Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 6 | 0/-0.050 | 0.10 | +/-0.020 | 6 | 13 | 20 | 5.80 | 57 | 4 | HF444060 | h |
| 8 | 0/-0.050 | 0.20 | +/-0.020 | 8 | 20 | 26 | 7.80 | 64 | 4 | HF444080 | h |
| 10 | 0/-0.050 | 0.20 | +/-0.020 | 10 | 22 | 30 | 9.80 | 72 | 4 | HF444100 | h |
| 12 | 0/-0.050 | 0.20 | +/-0.020 | 12 | 26 | 36 | 11.80 | 83 | 4 | HF444120 | h |
| 14 | 0/-0.050 | 0.20 | +/-0.020 | 14 | 26 | 36 | 13.70 | 83 | 4 | HF444140 | h |
| 16 | 0/-0.050 | 0.30 | +/-0.020 | 16 | 32 | 42 | 15.70 | 92 | 4 | HF444160 | h |
| 20 | 0/-0.050 | 0.40 | +/-0.020 | 20 | 38 | 50 | 19.70 | 104 | 4 | HF444200 | h |
