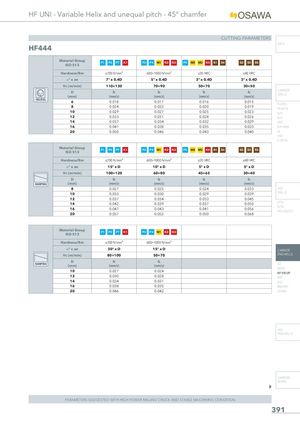

HF UNI - Variable Helix and unequal pitch - 45° chamfer
HF444
HELICAL
RAMPING
CUTTING PARAMETERS
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ° x ae | 7° x 0.4D | 5° x 0.4D | 3° x 0.4D | 3° x 0.4D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 6 | 0.018 | 0.017 | 0.016 | 0.015 |
| 8 | 0.024 | 0.022 | 0.020 | 0.019 |
| 10 | 0.029 | 0.027 | 0.025 | 0.023 |
| 12 | 0.033 | 0.031 | 0.028 | 0.026 |
| 14 | 0.037 | 0.034 | 0.032 | 0.029 |
| 16 | 0.041 | 0.038 | 0.035 | 0.033 |
| 20 | 0.050 | 0.046 | 0.043 | 0.040 |
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ° x ae | 15° x D | 10° x D | 5° x D | 5° x D | ||
| Vc (m/min) | 100÷120 | 60÷80 | 45÷65 | 30÷40 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 8 | 0.027 | 0.025 | 0.024 | 0.033 |
| 10 | 0.033 | 0.030 | 0.029 | 0.039 |
| 12 | 0.037 | 0.034 | 0.033 | 0.045 |
| 14 | 0.042 | 0.039 | 0.037 | 0.050 |
| 16 | 0.047 | 0.043 | 0.041 | 0.056 |
| 20 | 0.057 | 0.052 | 0.050 | 0.068 |
INFO
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
HSS DRILLS
LFTA SUTA HSS-HSS/CO
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
° x ae 30° x D 15° x D
CARBIDE
Vc (m/min) 80÷100 50÷70 END-MILLS
RAMPING D fz fz
G2
(mm) (mm/z) (mm/z)
MDTA
10 0.027 0.024
HF VH/UP
| 12 | 0.030 | 0.028 | MEF |
| 14 | 0.034 | 0.031 | ALU |
| 16 | 0.038 | 0.035 | MEX/MH |
| 20 | 0.046 | 0.042 | UH/MH |
HSS END-MILLS
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH POWER MILLING CHUCK AND STABLE MACHINING CONDITION
