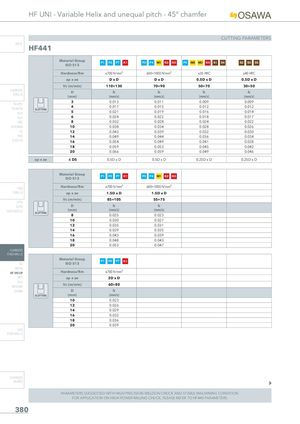

HF UNI - Variable Helix and unequal pitch - 45° chamfer
CUTTING PARAMETERS
INFO
HF441
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ap x ae | D x D | D x D | 0.5D x D | 0.5D x D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.013 | 0.011 | 0.009 | 0.009 |
PU-HPU
4 0.017 0.015 0.012 0.012
TA-4HTA SLOTTING
5 0.021 0.019 0.016 0.014
SUH
| ALH | 6 | 0.024 | 0.022 | 0.018 | 0.017 | |
| HRC | 8 | 0.032 | 0.028 | 0.024 | 0.022 | |
| SUH MINI | 10 | 0.038 | 0.034 | 0.028 | 0.026 | |
| HL | 12 | 0.043 | 0.039 | 0.032 | 0.030 | |
| HSD | 14 | 0.049 | 0.044 | 0.036 | 0.034 | |
| C-SD-TA | 16 | 0.054 | 0.049 | 0.041 | 0.038 | |
| 18 | 0.059 | 0.053 | 0.045 | 0.042 | ||
| 20 | 0.066 | 0.059 | 0.049 | 0.046 | ||
| ap x ae ≤ D5 | 0.5D x D | 0.5D x D | 0.25D x D | 0.25D x D |
HSS DRILLS
LFTA SUTA HSS-HSS/CO
CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HSS END-MILLS
SLOTTING
SLOTTING
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3
ISO 513
Hardness/Rm ≤700 N/mm² 600÷1000 N/mm²
| ap x ae | 1.5D x D | 1.5D x D |
| Vc (m/min) | 85÷105 | 55÷75 |
| D | fz | fz |
| (mm) | (mm/z) | (mm/z) |
| 8 | 0.025 | 0.023 |
| 10 | 0.030 | 0.027 |
| 12 | 0.035 | 0.031 |
| 14 | 0.039 | 0.035 |
| 16 | 0.043 | 0.039 |
| 18 | 0.048 | 0.043 |
| 20 | 0.053 | 0.047 |
Material Group P1 P2 P7 K1
ISO 513 Hardness/Rm ≤700 N/mm² ap x ae 2D x D Vc (m/min) 60÷80 D fz (mm) (mm/z) 10 0.023 12 0.026 14 0.029 16 0.032 18 0.036 20 0.039
CARBIDE BURRS
PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF440 PARAMETERS.
