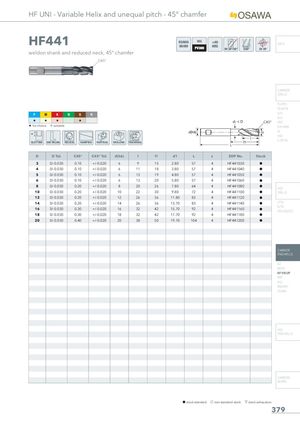

HF UNI - Variable Helix and unequal pitch - 45° chamfer

HF441

OSAWA NORM INFO

weldon shank and reduced neck, 45° chamfer

C45°

P	M	K	N	S	H
H	H	H		H

H 1st choice I suitable

2D

SLOTTING SIDE MILLING HELICAL RAMPING VERTICAL

DRILLING TROCHOIDAL

C45°

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

D	D Tol.	C45°	C45° Tol.	d(h6)	l	l1	d1	L	z	EDP No.	Stock
3	0/-0.030	0.10	+/-0.020	6	9	15	2.80	57	4	HF441030	h
4	0/-0.030	0.10	+/-0.020	6	11	18	3.80	57	4	HF441040	h
5	0/-0.030	0.10	+/-0.020	6	13	19	4.80	57	4	HF441050	h
6	0/-0.030	0.10	+/-0.020	6	13	20	5.80	57	4	HF441060	h
8	0/-0.030	0.20	+/-0.020	8	20	26	7.80	64	4	HF441080	h
10	0/-0.030	0.20	+/-0.020	10	22	30	9.80	72	4	HF441100	h
12	0/-0.030	0.20	+/-0.020	12	26	36	11.80	83	4	HF441120	h
14	0/-0.030	0.20	+/-0.020	14	26	36	13.70	83	4	HF441140	h
16	0/-0.030	0.30	+/-0.020	16	32	42	15.70	92	4	HF441160	h
18	0/-0.030	0.30	+/-0.020	18	32	42	17.70	92	4	HF441180	h
20	0/-0.030	0.40	+/-0.020	20	38	50	19.70	104	4	HF441200	h
