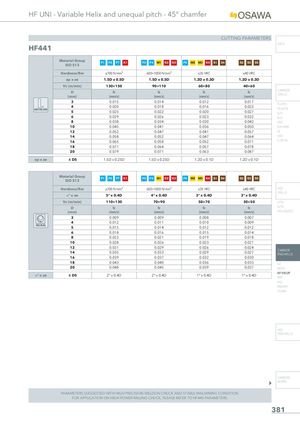

Общий каталог Osawa 2021 - страница 382
Навигация
Общий каталог Osawa 2018
HF UNI - Variable Helix and unequal pitch - 45° chamfer
CUTTING PARAMETERS
INFO
HF441
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||||
| ap x ae | 1.5D x 0.5D | 1.5D x 0.5D | 1.2D x 0.3D | 1.2D x 0.3D | ||||
| Vc (m/min) | 130÷150 | 90÷110 | 60÷80 | 40÷60 |
CARBIDE
D fz fz fz fz
DRILLS
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.015 | 0.014 | 0.012 | 0.017 |
PU-HPU
4 0.020 0.018 0.016 0.022
SIDE MILLING TA-4HTA
5 0.025 0.022 0.020 0.027
SUH
| 6 | 0.029 | 0.026 | 0.023 | 0.032 | ALH |
| 8 | 0.038 | 0.034 | 0.030 | 0.042 | HRC |
| 10 | 0.045 | 0.041 | 0.036 | 0.050 | SUH MINI |
| 12 | 0.052 | 0.047 | 0.041 | 0.057 | HL |
| 14 | 0.058 | 0.052 | 0.047 | 0.064 | HSD |
| 16 | 0.065 | 0.058 | 0.052 | 0.071 | C-SD-TA |
| 18 | 0.071 | 0.064 | 0.057 | 0.078 | |
| 20 | 0.079 | 0.071 | 0.063 | 0.087 |
ap x ae ≤ D5 1.5D x 0.25D 1.5D x 0.25D 1.2D x 0.1D 1.2D x 0.1D
Material Group P1 P2 P7 K1 P3 P4 M1 K2 K3 P5 M2 M3 K4 S1 S4 S2 S3 S5
ISO 513
| Hardness/Rm | ≤700 N/mm² | 600÷1000 N/mm² | ≤35 HRC | ≤40 HRC | ||
| ° x ae | 5° x 0.4D | 4° x 0.4D | 3° x 0.4D | 3° x 0.4D | ||
| Vc (m/min) | 110÷130 | 70÷90 | 50÷70 | 30÷50 |
| D | fz | fz | fz | fz |
| (mm) | (mm/z) | (mm/z) | (mm/z) | (mm/z) |
| 3 | 0.009 | 0.009 | 0.008 | 0.007 |
| 4 | 0.012 | 0.011 | 0.010 | 0.009 |
HELICAL
| 5 | 0.015 | 0.014 | 0.012 | 0.012 |
| 6 | 0.018 | 0.016 | 0.015 | 0.014 |
| 8 | 0.023 | 0.021 | 0.019 | 0.018 |
| 10 | 0.028 | 0.026 | 0.023 | 0.021 |
| 12 | 0.031 | 0.029 | 0.026 | 0.024 |
| 14 | 0.035 | 0.033 | 0.029 | 0.027 |
| 16 | 0.039 | 0.037 | 0.032 | 0.030 |
| 18 | 0.043 | 0.040 | 0.036 | 0.033 |
| 20 | 0.048 | 0.045 | 0.039 | 0.037 |
° x ae ≤ D5 2° x 0.4D 2° x 0.4D 1° x 0.4D 1° x 0.4D
HSS DRILLS LFTA SUTA HSS-HSS/CO
CARBIDE END-MILLS
G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HSS END-MILLS
PARAMETERS SUGGESTED WITH HIGH PRECISION WELDON CHUCK AND STABLE MACHINING CONDITION. FOR APPLICATION ON HIGH POWER MILLING CHUCK, PLEASE REFER TO HF440 PARAMETERS.
