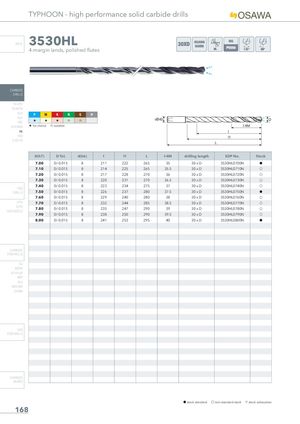

TYPHOON - high performance solid carbide drills
3530HL
30XD OSAWA INFO NORM 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K | N | S H |
| H H | H | I | I |
| H1st choiceI | suitable |
HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 7.00 | 0/-0.015 | 8 | 211 | 222 | 265 | 35 | 30 x D | 3530HL0700N | h |
| 7.10 | 0/-0.015 | 8 | 214 | 225 | 265 | 35.5 | 30 x D | 3530HL0710N | f |
| 7.20 | 0/-0.015 | 8 | 217 | 228 | 270 | 36 | 30 x D | 3530HL0720N | f |
| 7.30 | 0/-0.015 | 8 | 220 | 231 | 270 | 36.5 | 30 x D | 3530HL0730N | f |
| 7.40 | 0/-0.015 | 8 | 223 | 234 | 275 | 37 | 30 x D | 3530HL0740N | f |
| 7.50 | 0/-0.015 | 8 | 226 | 237 | 280 | 37.5 | 30 x D | 3530HL0750N | h |
| 7.60 | 0/-0.015 | 8 | 229 | 240 | 280 | 38 | 30 x D | 3530HL0760N | f |
| 7.70 | 0/-0.015 | 8 | 232 | 244 | 285 | 38.5 | 30 x D | 3530HL0770N | f |
| 7.80 | 0/-0.015 | 8 | 235 | 247 | 290 | 39 | 30 x D | 3530HL0780N | f |
| 7.90 | 0/-0.015 | 8 | 238 | 250 | 290 | 39.5 | 30 x D | 3530HL0790N | f |
| 8.00 | 0/-0.015 | 8 | 241 | 253 | 295 | 40 | 30 x D | 3530HL0800N | h |
CARBIDE END-MILLS
G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH
HSS END-MILLS
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
