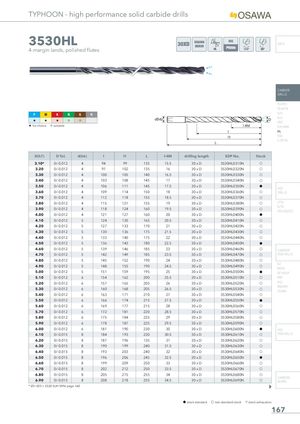

TYPHOON - high performance solid carbide drills
3530HL
30XD OSAWA NORM INFO 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K N | S H | |||||||
| H H | H I | I | |||||||
| H1st choice | Isuitable | ||||||||
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 3.10 | 0/-0.012 | 4 | 94 | 99 | 135 | 15.5 | 30 x D | 3530HL0310N | f |
| 3.20 | 0/-0.012 | 4 | 97 | 102 | 135 | 16 | 30 x D | 3530HL0320N | f |
| 3.30 | 0/-0.012 | 4 | 100 | 105 | 140 | 16.5 | 30 x D | 3530HL0330N | f |
| 3.40 | 0/-0.012 | 4 | 103 | 108 | 145 | 17 | 30 x D | 3530HL0340N | f |
| 3.50 | 0/-0.012 | 4 | 106 | 111 | 145 | 17.5 | 30 x D | 3530HL0350N | h |
| 3.60 | 0/-0.012 | 4 | 109 | 114 | 150 | 18 | 30 x D | 3530HL0360N | f |
| 3.70 | 0/-0.012 | 4 | 112 | 118 | 155 | 18.5 | 30 x D | 3530HL0370N | f |
| 3.80 | 0/-0.012 | 4 | 115 | 121 | 155 | 19 | 30 x D | 3530HL0380N | f |
| 3.90 | 0/-0.012 | 4 | 118 | 124 | 160 | 19.5 | 30 x D | 3530HL0390N | f |
| 4.00 | 0/-0.012 | 4 | 121 | 127 | 160 | 20 | 30 x D | 3530HL0400N | h |
| 4.10 | 0/-0.012 | 5 | 124 | 130 | 165 | 20.5 | 30 x D | 3530HL0410N | f |
| 4.20 | 0/-0.012 | 5 | 127 | 133 | 170 | 21 | 30 x D | 3530HL0420N | f |
| 4.30 | 0/-0.012 | 5 | 130 | 136 | 175 | 21.5 | 30 x D | 3530HL0430N | f |
| 4.40 | 0/-0.012 | 5 | 133 | 140 | 175 | 22 | 30 x D | 3530HL0440N | f |
| 4.50 | 0/-0.012 | 5 | 136 | 143 | 180 | 22.5 | 30 x D | 3530HL0450N | h |
| 4.60 | 0/-0.012 | 5 | 139 | 146 | 185 | 23 | 30 x D | 3530HL0460N | f |
| 4.70 | 0/-0.012 | 5 | 142 | 149 | 185 | 23.5 | 30 x D | 3530HL0470N | f |
| 4.80 | 0/-0.012 | 5 | 145 | 152 | 190 | 24 | 30 x D | 3530HL0480N | f |
| 4.90 | 0/-0.012 | 5 | 148 | 155 | 190 | 24.5 | 30 x D | 3530HL0490N | f |
| 5.00 | 0/-0.012 | 5 | 151 | 159 | 195 | 25 | 30 x D | 3530HL0500N | h |
| 5.10 | 0/-0.012 | 6 | 154 | 162 | 200 | 25.5 | 30 x D | 3530HL0510N | f |
| 5.20 | 0/-0.012 | 6 | 157 | 165 | 205 | 26 | 30 x D | 3530HL0520N | f |
| 5.30 | 0/-0.012 | 6 | 160 | 168 | 205 | 26.5 | 30 x D | 3530HL0530N | f |
| 5.40 | 0/-0.012 | 6 | 163 | 171 | 210 | 27 | 30 x D | 3530HL0540N | f |
| 5.50 | 0/-0.012 | 6 | 166 | 174 | 215 | 27.5 | 30 x D | 3530HL0550N | h |
| 5.60 | 0/-0.012 | 6 | 169 | 177 | 215 | 28 | 30 x D | 3530HL0560N | f |
| 5.70 | 0/-0.012 | 6 | 172 | 181 | 220 | 28.5 | 30 x D | 3530HL0570N | f |
| 5.80 | 0/-0.012 | 6 | 175 | 184 | 225 | 29 | 30 x D | 3530HL0580N | f |
| 5.90 | 0/-0.012 | 6 | 178 | 187 | 225 | 29.5 | 30 x D | 3530HL0590N | f |
| 6.00 | 0/-0.012 | 6 | 181 | 190 | 230 | 30 | 30 x D | 3530HL0600N | h |
| 6.10 | 0/-0.015 | 8 | 184 | 193 | 230 | 30.5 | 30 x D | 3530HL0610N | f |
| 6.20 | 0/-0.015 | 8 | 187 | 196 | 135 | 31 | 30 x D | 3530HL0620N | f |
| 6.30 | 0/-0.015 | 8 | 190 | 199 | 240 | 31.5 | 30 x D | 3530HL0630N | f |
| 6.40 | 0/-0.015 | 8 | 193 | 203 | 240 | 32 | 30 x D | 3530HL0640N | f |
| 6.50 | 0/-0.015 | 8 | 196 | 206 | 245 | 32.5 | 30 x D | 3530HL0650N | h |
| 6.60 | 0/-0.015 | 8 | 199 | 209 | 250 | 33 | 30 x D | 3530HL0660N | f |
| 6.70 | 0/-0.015 | 8 | 202 | 212 | 250 | 33.5 | 30 x D | 3530HL0670N | f |
| 6.80 | 0/-0.015 | 8 | 205 | 215 | 255 | 34 | 30 x D | 3530HL0680N | f |
| 6.90 | 0/-0.015 | 8 | 208 | 218 | 255 | 34.5 | 30 x D | 3530HL0690N | f |
