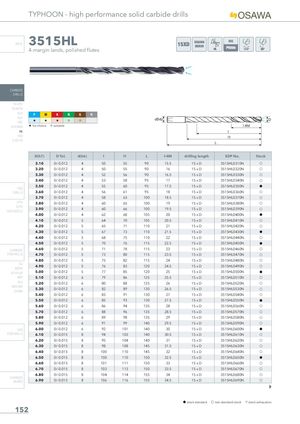

TYPHOON - high performance solid carbide drills
3515HL
15XD OSAWA INFO NORM 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H H | H I | I |
| H1st choiceI | suitable |
HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 3.10 | 0/-0.012 | 4 | 50 | 55 | 90 | 15.5 | 15 x D | 3515HL0310N | f |
| 3.20 | 0/-0.012 | 4 | 50 | 55 | 90 | 16 | 15 x D | 3515HL0320N | f |
| 3.30 | 0/-0.012 | 4 | 52 | 56 | 90 | 16.5 | 15 x D | 3515HL0330N | f |
| 3.40 | 0/-0.012 | 4 | 53 | 58 | 95 | 17 | 15 x D | 3515HL0340N | f |
| 3.50 | 0/-0.012 | 4 | 55 | 60 | 95 | 17.5 | 15 x D | 3515HL0350N | h |
| 3.60 | 0/-0.012 | 4 | 56 | 61 | 95 | 18 | 15 x D | 3515HL0360N | f |
| 3.70 | 0/-0.012 | 4 | 58 | 63 | 100 | 18.5 | 15 x D | 3515HL0370N | f |
| 3.80 | 0/-0.012 | 4 | 60 | 65 | 100 | 19 | 15 x D | 3515HL0380N | f |
| 3.90 | 0/-0.012 | 4 | 60 | 66 | 100 | 19.5 | 15 x D | 3515HL0390N | f |
| 4.00 | 0/-0.012 | 4 | 62 | 68 | 105 | 20 | 15 x D | 3515HL0400N | h |
| 4.10 | 0/-0.012 | 5 | 64 | 70 | 105 | 20.5 | 15 x D | 3515HL0410N | f |
| 4.20 | 0/-0.012 | 5 | 65 | 71 | 110 | 21 | 15 x D | 3515HL0420N | f |
| 4.30 | 0/-0.012 | 5 | 67 | 73 | 110 | 21.5 | 15 x D | 3515HL0430N | h |
| 4.40 | 0/-0.012 | 5 | 68 | 75 | 110 | 22 | 15 x D | 3515HL0440N | f |
| 4.50 | 0/-0.012 | 5 | 70 | 76 | 115 | 22.5 | 15 x D | 3515HL0450N | h |
| 4.60 | 0/-0.012 | 5 | 71 | 78 | 115 | 23 | 15 x D | 3515HL0460N | f |
| 4.70 | 0/-0.012 | 5 | 73 | 80 | 115 | 23.5 | 15 x D | 3515HL0470N | f |
| 4.80 | 0/-0.012 | 5 | 75 | 82 | 115 | 24 | 15 x D | 3515HL0480N | f |
| 4.90 | 0/-0.012 | 5 | 76 | 83 | 120 | 24.5 | 15 x D | 3515HL0490N | f |
| 5.00 | 0/-0.012 | 5 | 77 | 85 | 120 | 25 | 15 x D | 3515HL0500N | h |
| 5.10 | 0/-0.012 | 6 | 79 | 86 | 125 | 25.5 | 15 x D | 3515HL0510N | f |
| 5.20 | 0/-0.012 | 6 | 80 | 88 | 125 | 26 | 15 x D | 3515HL0520N | f |
| 5.30 | 0/-0.012 | 6 | 82 | 89 | 130 | 26.5 | 15 x D | 3515HL0530N | f |
| 5.40 | 0/-0.012 | 6 | 83 | 91 | 130 | 27 | 15 x D | 3515HL0540N | f |
| 5.50 | 0/-0.012 | 6 | 85 | 93 | 130 | 27.5 | 15 x D | 3515HL0550N | h |
| 5.60 | 0/-0.012 | 6 | 86 | 94 | 135 | 28 | 15 x D | 3515HL0560N | f |
| 5.70 | 0/-0.012 | 6 | 88 | 96 | 135 | 28.5 | 15 x D | 3515HL0570N | f |
| 5.80 | 0/-0.012 | 6 | 89 | 98 | 135 | 29 | 15 x D | 3515HL0580N | f |
| 5.90 | 0/-0.012 | 6 | 91 | 99 | 140 | 29.5 | 15 x D | 3515HL0590N | f |
| 6.00 | 0/-0.012 | 6 | 92 | 101 | 140 | 30 | 15 x D | 3515HL0600N | h |
| 6.10 | 0/-0.015 | 8 | 94 | 103 | 140 | 30.5 | 15 x D | 3515HL0610N | f |
| 6.20 | 0/-0.015 | 8 | 95 | 104 | 140 | 31 | 15 x D | 3515HL0620N | f |
| 6.30 | 0/-0.015 | 8 | 98 | 108 | 145 | 31.5 | 15 x D | 3515HL0630N | f |
| 6.40 | 0/-0.015 | 8 | 100 | 110 | 145 | 32 | 15 x D | 3515HL0640N | f |
| 6.50 | 0/-0.015 | 8 | 100 | 110 | 150 | 32.5 | 15 x D | 3515HL0650N | h |
| 6.60 | 0/-0.015 | 8 | 101 | 111 | 150 | 33 | 15 x D | 3515HL0660N | f |
| 6.70 | 0/-0.015 | 8 | 103 | 113 | 150 | 33.5 | 15 x D | 3515HL0670N | f |
| 6.80 | 0/-0.015 | 8 | 104 | 114 | 155 | 34 | 15 x D | 3515HL0680N | f |
| 6.90 | 0/-0.015 | 8 | 106 | 116 | 155 | 34.5 | 15 x D | 3515HL0690N | f |
