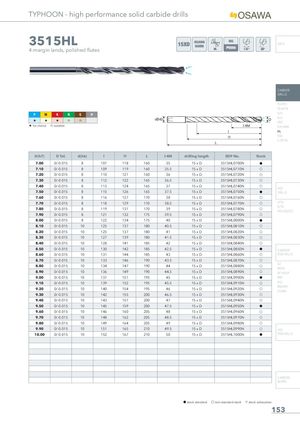

TYPHOON - high performance solid carbide drills
3515HL
15XD OSAWA NORM INFO 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K | N | S H |
| H H | H | I | I |
| H1st choiceI | suitable |
TA-4HTA SUH ALH HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 7.00 | 0/-0.015 | 8 | 107 | 118 | 160 | 35 | 15 x D | 3515HL0700N | h |
| 7.10 | 0/-0.015 | 8 | 109 | 119 | 160 | 35.5 | 15 x D | 3515HL0710N | f |
| 7.20 | 0/-0.015 | 8 | 110 | 121 | 160 | 36 | 15 x D | 3515HL0720N | f |
| 7.30 | 0/-0.015 | 8 | 112 | 122 | 165 | 36.5 | 15 x D | 3515HL0730N | f |
| 7.40 | 0/-0.015 | 8 | 113 | 124 | 165 | 37 | 15 x D | 3515HL0740N | f |
| 7.50 | 0/-0.015 | 8 | 115 | 126 | 165 | 37.5 | 15 x D | 3515HL0750N | h |
| 7.60 | 0/-0.015 | 8 | 116 | 127 | 170 | 38 | 15 x D | 3515HL0760N | f |
| 7.70 | 0/-0.015 | 8 | 118 | 129 | 170 | 38.5 | 15 x D | 3515HL0770N | f |
| 7.80 | 0/-0.015 | 8 | 119 | 131 | 170 | 39 | 15 x D | 3515HL0780N | f |
| 7.90 | 0/-0.015 | 8 | 121 | 132 | 175 | 39.5 | 15 x D | 3515HL0790N | f |
| 8.00 | 0/-0.015 | 8 | 122 | 134 | 175 | 40 | 15 x D | 3515HL0800N | h |
| 8.10 | 0/-0.015 | 10 | 125 | 137 | 180 | 40.5 | 15 x D | 3515HL0810N | f |
| 8.20 | 0/-0.015 | 10 | 125 | 137 | 180 | 41 | 15 x D | 3515HL0820N | f |
| 8.30 | 0/-0.015 | 10 | 127 | 139 | 180 | 41.5 | 15 x D | 3515HL0830N | f |
| 8.40 | 0/-0.015 | 10 | 128 | 141 | 185 | 42 | 15 x D | 3515HL0840N | f |
| 8.50 | 0/-0.015 | 10 | 130 | 142 | 185 | 42.5 | 15 x D | 3515HL0850N | h |
| 8.60 | 0/-0.015 | 10 | 131 | 144 | 185 | 43 | 15 x D | 3515HL0860N | f |
| 8.70 | 0/-0.015 | 10 | 133 | 146 | 190 | 43.5 | 15 x D | 3515HL0870N | f |
| 8.80 | 0/-0.015 | 10 | 134 | 147 | 190 | 44 | 15 x D | 3515HL0880N | f |
| 8.90 | 0/-0.015 | 10 | 136 | 149 | 190 | 44.5 | 15 x D | 3515HL0890N | f |
| 9.00 | 0/-0.015 | 10 | 137 | 151 | 195 | 45 | 15 x D | 3515HL0900N | h |
| 9.10 | 0/-0.015 | 10 | 139 | 152 | 195 | 45.5 | 15 x D | 3515HL0910N | f |
| 9.20 | 0/-0.015 | 10 | 140 | 154 | 195 | 46 | 15 x D | 3515HL0920N | f |
| 9.30 | 0/-0.015 | 10 | 142 | 155 | 200 | 46.5 | 15 x D | 3515HL0930N | f |
| 9.40 | 0/-0.015 | 10 | 143 | 157 | 200 | 47 | 15 x D | 3515HL0940N | f |
| 9.50 | 0/-0.015 | 10 | 145 | 159 | 200 | 47.5 | 15 x D | 3515HL0950N | h |
| 9.60 | 0/-0.015 | 10 | 146 | 160 | 205 | 48 | 15 x D | 3515HL0960N | f |
| 9.70 | 0/-0.015 | 10 | 148 | 162 | 205 | 48.5 | 15 x D | 3515HL0970N | f |
| 9.80 | 0/-0.015 | 10 | 149 | 164 | 205 | 49 | 15 x D | 3515HL0980N | f |
| 9.90 | 0/-0.015 | 10 | 151 | 165 | 210 | 49.5 | 15 x D | 3515HL0990N | f |
| 10.00 | 0/-0.015 | 10 | 152 | 167 | 210 | 50 | 15 x D | 3515HL1000N | h |
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
