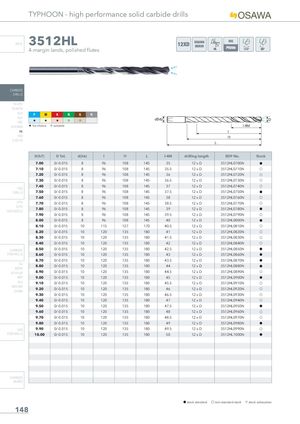

TYPHOON - high performance solid carbide drills
3512HL
12XD OSAWA INFO NORM 4-margin lands, polished flutes 135°
CARBIDE DRILLS
PU-HPU
| P M | K N | S H |
| H H | H I | I |
| H1st choiceI | suitable |
HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA
| D(h7) | D Tol. | d(h6) | l | l1 | L | l-4M | drilling length | EDP No. | Stock |
| 7.00 | 0/-0.015 | 8 | 96 | 108 | 145 | 35 | 12 x D | 3512HL0700N | h |
| 7.10 | 0/-0.015 | 8 | 96 | 108 | 145 | 35.5 | 12 x D | 3512HL0710N | f |
| 7.20 | 0/-0.015 | 8 | 96 | 108 | 145 | 36 | 12 x D | 3512HL0720N | f |
| 7.30 | 0/-0.015 | 8 | 96 | 108 | 145 | 36.5 | 12 x D | 3512HL0730N | f |
| 7.40 | 0/-0.015 | 8 | 96 | 108 | 145 | 37 | 12 x D | 3512HL0740N | f |
| 7.50 | 0/-0.015 | 8 | 96 | 108 | 145 | 37.5 | 12 x D | 3512HL0750N | h |
| 7.60 | 0/-0.015 | 8 | 96 | 108 | 145 | 38 | 12 x D | 3512HL0760N | f |
| 7.70 | 0/-0.015 | 8 | 96 | 108 | 145 | 38.5 | 12 x D | 3512HL0770N | f |
| 7.80 | 0/-0.015 | 8 | 96 | 108 | 145 | 39 | 12 x D | 3512HL0780N | h |
| 7.90 | 0/-0.015 | 8 | 96 | 108 | 145 | 39.5 | 12 x D | 3512HL0790N | f |
| 8.00 | 0/-0.015 | 8 | 96 | 108 | 145 | 40 | 12 x D | 3512HL0800N | h |
| 8.10 | 0/-0.015 | 10 | 115 | 127 | 170 | 40.5 | 12 x D | 3512HL0810N | f |
| 8.20 | 0/-0.015 | 10 | 120 | 135 | 180 | 41 | 12 x D | 3512HL0820N | f |
| 8.30 | 0/-0.015 | 10 | 120 | 135 | 180 | 41.5 | 12 x D | 3512HL0830N | f |
| 8.40 | 0/-0.015 | 10 | 120 | 135 | 180 | 42 | 12 x D | 3512HL0840N | f |
| 8.50 | 0/-0.015 | 10 | 120 | 135 | 180 | 42.5 | 12 x D | 3512HL0850N | h |
| 8.60 | 0/-0.015 | 10 | 120 | 135 | 180 | 43 | 12 x D | 3512HL0860N | h |
| 8.70 | 0/-0.015 | 10 | 120 | 135 | 180 | 43.5 | 12 x D | 3512HL0870N | h |
| 8.80 | 0/-0.015 | 10 | 120 | 135 | 180 | 44 | 12 x D | 3512HL0880N | h |
| 8.90 | 0/-0.015 | 10 | 120 | 135 | 180 | 44.5 | 12 x D | 3512HL0890N | f |
| 9.00 | 0/-0.015 | 10 | 120 | 135 | 180 | 45 | 12 x D | 3512HL0900N | h |
| 9.10 | 0/-0.015 | 10 | 120 | 135 | 180 | 45.5 | 12 x D | 3512HL0910N | f |
| 9.20 | 0/-0.015 | 10 | 120 | 135 | 180 | 46 | 12 x D | 3512HL0920N | f |
| 9.30 | 0/-0.015 | 10 | 120 | 135 | 180 | 46.5 | 12 x D | 3512HL0930N | f |
| 9.40 | 0/-0.015 | 10 | 120 | 135 | 180 | 47 | 12 x D | 3512HL0940N | f |
| 9.50 | 0/-0.015 | 10 | 120 | 135 | 180 | 47.5 | 12 x D | 3512HL0950N | h |
| 9.60 | 0/-0.015 | 10 | 120 | 135 | 180 | 48 | 12 x D | 3512HL0960N | f |
| 9.70 | 0/-0.015 | 10 | 120 | 135 | 180 | 48.5 | 12 x D | 3512HL0970N | f |
| 9.80 | 0/-0.015 | 10 | 120 | 135 | 180 | 49 | 12 x D | 3512HL0980N | h |
| 9.90 | 0/-0.015 | 10 | 120 | 135 | 180 | 49.5 | 12 x D | 3512HL0990N | f |
| 10.00 | 0/-0.015 | 10 | 120 | 135 | 180 | 50 | 12 x D | 3512HL1000N | h |
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
