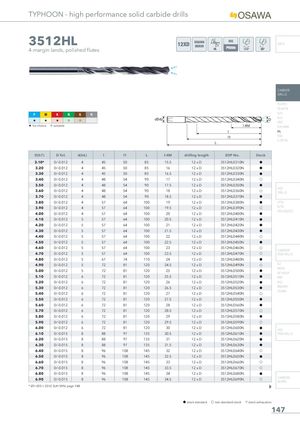

TYPHOON - high performance solid carbide drills 3512HL 12XD OSAWANORM INFO 4-margin lands, polished flutes 135° CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H H H I I HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA D(h7) D Tol. d(h6) l l1 L l-4M drilling length EDP No. Stock 3.10* 0/-0.012 4 45 50 85 15.5 12 x D 3512HL0310N h 3.20 0/-0.012 4 45 50 85 16 12 x D 3512HL0320N h 3.30 0/-0.012 4 45 50 85 16.5 12 x D 3512HL0330N h 3.40 0/-0.012 4 48 54 90 17 12 x D 3512HL0340N f 3.50 0/-0.012 4 48 54 90 17.5 12 x D 3512HL0350N h 3.60 0/-0.012 4 48 54 90 18 12 x D 3512HL0360N f HSSDRILLS 3.70 0/-0.012 4 48 54 90 18.5 12 x D 3512HL0370N h 3.80 0/-0.012 4 57 64 100 19 12 x D 3512HL0380N h LFTA 3.90 0/-0.012 4 57 64 100 19.5 12 x D 3512HL0390N f SUTA 4.00 0/-0.012 4 57 64 100 20 12 x D 3512HL0400N h HSS-HSS/CO 4.10 0/-0.012 5 57 64 100 20.5 12 x D 3512HL0410N h 4.20 0/-0.012 5 57 64 100 21 12 x D 3512HL0420N h 4.30 0/-0.012 5 57 64 100 21.5 12 x D 3512HL0430N h 4.40 0/-0.012 5 57 64 100 22 12 x D 3512HL0440N f 4.50 0/-0.012 5 57 64 100 22.5 12 x D 3512HL0450N h 4.60 0/-0.012 5 57 64 100 23 12 x D 3512HL0460N f CARBIDE 4.70 0/-0.012 5 57 64 100 23.5 12 x D 3512HL0470N f END-MILLS 4.80 0/-0.012 5 67 74 110 24 12 x D 3512HL0480N h 4.90 0/-0.012 5 72 81 120 24.5 12 x D 3512HL0490N f G2 5.00 0/-0.012 5 72 81 120 25 12 x D 3512HL0500N h MDTAHF VH/UP 5.10 0/-0.012 6 72 81 120 25.5 12 x D 3512HL0510N h MEF 5.20 0/-0.012 6 72 81 120 26 12 x D 3512HL0520N h ALU 5.30 0/-0.012 6 72 81 120 26.5 12 x D 3512HL0530N h MEX/MH 5.40 0/-0.012 6 72 81 120 27 12 x D 3512HL0540N f UH/MH 5.50 0/-0.012 6 72 81 120 27.5 12 x D 3512HL0550N h 5.60 0/-0.012 6 72 81 120 28 12 x D 3512HL0560N h 5.70 0/-0.012 6 72 81 120 28.5 12 x D 3512HL0570N f 5.80 0/-0.012 6 72 81 120 29 12 x D 3512HL0580N h 5.90 0/-0.012 6 72 81 120 29.5 12 x D 3512HL0590N f 6.00 0/-0.012 6 72 81 120 30 12 x D 3512HL0600N h HSS 6.10 0/-0.015 8 88 97 135 30.5 12 x D 3512HL0610N h END-MILLS 6.20 0/-0.015 8 88 97 135 31 12 x D 3512HL0620N h 6.30 0/-0.015 8 88 97 135 31.5 12 x D 3512HL0630N h 6.40 0/-0.015 8 96 108 145 32 12 x D 3512HL0640N f 6.50 0/-0.015 8 96 108 145 32.5 12 x D 3512HL0650N h 6.60 0/-0.015 8 96 108 145 33 12 x D 3512HL0660N f 6.70 0/-0.015 8 96 108 145 33.5 12 x D 3512HL0670N f 6.80 0/-0.015 8 96 108 145 34 12 x D 3512HL0680N h 6.90 0/-0.015 8 96 108 145 34.5 12 x D 3512HL0690N f CARBIDE BURRS * Ø1÷Ø3 = 3512 SUH MINI page 148 h stock standard f non-standard stock m stock exhaustion 147
