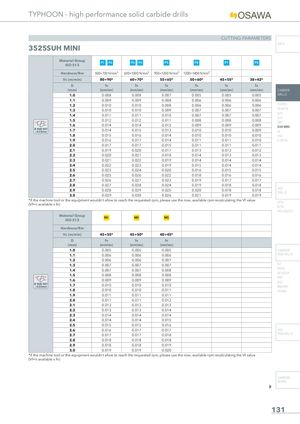

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3525SUH MINI Material Group P1 P2 P3 P4 P5 P6 P7 P8 ISO 513 Hardness/Rm 500÷700 N/mm² 600÷1000 N/mm² 900÷1200 N/mm² 1200÷1400 N/mm² Vc (m/min) 80÷90* 60÷70* 55÷65* 50÷60* 45÷55* 38÷42* D fn fn fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.008 0.008 0.007 0.005 0.005 0.005 DRILLS 1.1 0.009 0.009 0.008 0.006 0.006 0.006 1.2 0.010 0.010 0.008 0.006 0.006 0.006 PU-HPU TA-4HTA 1.3 0.010 0.010 0.009 0.007 0.007 0.007 SUH 1.4 0.011 0.011 0.010 0.007 0.007 0.007 ALH 1.5 0.012 0.012 0.011 0.008 0.008 0.008 HRC 1.6 0.014 0.014 0.012 0.009 0.009 0.009 SUH MINI Ø RUN OUT 1.7 0.014 0.015 0.013 0.010 0.010 0.009 <0.02mm HL 1.8 0.015 0.016 0.014 0.010 0.010 0.010 HSD 1.9 0.016 0.017 0.014 0.011 0.011 0.010 C-SD-TA 2.0 0.017 0.017 0.015 0.011 0.011 0.011 2.1 0.019 0.020 0.017 0.013 0.013 0.012 2.2 0.020 0.021 0.018 0.014 0.013 0.013 2.3 0.021 0.022 0.019 0.014 0.014 0.014 2.4 0.022 0.023 0.019 0.015 0.014 0.014 2.5 0.023 0.024 0.020 0.016 0.015 0.015 2.6 0.025 0.026 0.022 0.018 0.016 0.016 2.7 0.026 0.027 0.023 0.019 0.017 0.017 2.8 0.027 0.028 0.024 0.019 0.018 0.018 HSS 2.9 0.028 0.029 0.025 0.020 0.018 0.018 DRILLS 3.0 0.029 0.030 0.026 0.021 0.019 0.019 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA (Vf=n available x fn) SUTA HSS-HSS/CO Material Group M1 M2 M3 ISO 513 Hardness/Rm Vc (m/min) 45÷55* 45÷50* 40÷45* D fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) 1.0 0.005 0.005 0.005 CARBIDE 1.1 0.006 0.006 0.006 END-MILLS 1.2 0.006 0.006 0.007 1.3 0.007 0.007 0.007 G2 MDTA 1.4 0.007 0.007 0.008 HF VH/UP 1.5 0.008 0.008 0.008 MEF 1.6 0.009 0.009 0.009 ALU Ø RUN OUT 1.7 0.010 0.010 0.010 <0.02mm MEX/MH 1.8 0.010 0.010 0.011 UH/MH 1.9 0.011 0.011 0.011 2.0 0.011 0.011 0.012 2.1 0.013 0.013 0.013 2.2 0.013 0.013 0.014 2.3 0.014 0.014 0.014 2.4 0.014 0.014 0.015 2.5 0.015 0.015 0.016 2.6 0.016 0.017 0.017 HSS 2.7 0.017 0.017 0.018 END-MILLS 2.8 0.018 0.018 0.018 2.9 0.018 0.018 0.019 3.0 0.019 0.019 0.020 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) CARBIDE BURRS 131 Libro 1.indb 131 21/10/2021 12:08:47
