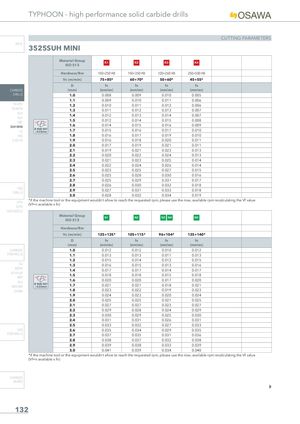

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 3525SUH MINI Material GroupISO 513 K1 K2 K3 K4 Hardness/Rm 150÷250 HB 150÷350 HB 120÷260 HB 250÷500 HB Vc (m/min) 75÷85* 60÷70* 50÷60* 45÷55* D fn fn fn fn CARBIDE (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) DRILLS 1.0 0.008 0.009 0.010 0.005 1.1 0.009 0.010 0.011 0.006 PU-HPU 1.2 0.010 0.011 0.012 0.006 TA-4HTA 1.3 0.011 0.012 0.013 0.007 SUH 1.4 0.012 0.013 0.014 0.007 ALH HRC 1.5 0.012 0.014 0.015 0.008 SUH MINI 1.6 0.014 0.015 0.016 0.009 Ø RUN OUTHL<0.02mm 1.7 0.015 0.016 0.017 0.010 HSD 1.8 0.016 0.017 0.019 0.010 C-SD-TA 1.9 0.016 0.018 0.020 0.011 2.0 0.017 0.019 0.021 0.011 2.1 0.019 0.021 0.023 0.013 2.2 0.020 0.022 0.024 0.013 2.3 0.021 0.023 0.025 0.014 2.4 0.022 0.024 0.026 0.014 2.5 0.023 0.025 0.027 0.015 2.6 0.025 0.028 0.030 0.016 2.7 0.025 0.029 0.031 0.017 2.8 0.026 0.030 0.032 0.018 HSSDRILLS 2.9 0.027 0.031 0.033 0.018 3.0 0.028 0.032 0.034 0.019 LFTASUTA*if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value(Vf=n available x fn) HSS-HSS/CO Material Group N1 N2 N3 N4 N5 ISO 513 Hardness/Rm Vc (m/min) 125÷135* 105÷115* 96÷104* 135÷140* D fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.012 0.012 0.010 0.012 END-MILLS 1.1 0.013 0.013 0.011 0.013 1.2 0.015 0.014 0.012 0.015 G2 1.3 0.016 0.015 0.013 0.016 MDTA 1.4 0.017 0.017 0.014 0.017 HF VH/UPMEF 1.5 0.018 0.018 0.015 0.018 ALU Ø RUN OUTMEX/MH<0.02mm1.61.7 0.020 0.020 0.017 0.0200.0210.0210.0180.021 UH/MH 1.8 0.023 0.022 0.019 0.023 1.9 0.024 0.023 0.020 0.024 2.0 0.025 0.025 0.021 0.025 2.1 0.027 0.027 0.023 0.027 2.2 0.029 0.028 0.024 0.029 2.3 0.030 0.029 0.025 0.030 2.4 0.031 0.031 0.026 0.031 2.5 0.033 0.032 0.027 0.033 HSS 2.6 0.035 0.034 0.029 0.035 END-MILLS 2.7 0.037 0.035 0.031 0.036 2.8 0.038 0.037 0.032 0.038 2.9 0.039 0.038 0.033 0.039 3.0 0.041 0.039 0.034 0.040 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value (Vf=n available x fn) CARBIDE BURRS 132
