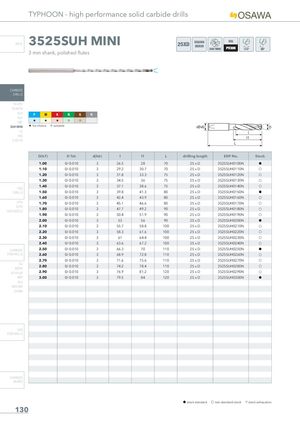

TYPHOON - high performance solid carbide drills
3525SUH MINI
25XD OSAWA INFO NORM 135°
3 mm shank, polished flutes
CARBIDE DRILLS
PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA
| P | M | K | N | S | H |
| H | H | H | I | I |
H 1st choice I suitable
| D(h7) | D Tol. | d(h6) | l | l1 | L | drilling length | EDP No. | Stock |
| 1.00 | 0/-0.010 | 3 | 26.5 | 28 | 70 | 25 x D | 3525SUH0100N | h |
| 1.10 | 0/-0.010 | 3 | 29.2 | 30.7 | 70 | 25 x D | 3525SUH0110N | f |
| 1.20 | 0/-0.010 | 3 | 31.8 | 33.3 | 75 | 25 x D | 3525SUH0120N | f |
| 1.30 | 0/-0.010 | 3 | 34.5 | 36 | 75 | 25 x D | 3525SUH0130N | f |
| 1.40 | 0/-0.010 | 3 | 37.1 | 38.6 | 75 | 25 x D | 3525SUH0140N | f |
| 1.50 | 0/-0.010 | 3 | 39.8 | 41.3 | 80 | 25 x D | 3525SUH0150N | h |
| 1.60 | 0/-0.010 | 3 | 42.4 | 43.9 | 80 | 25 x D | 3525SUH0160N | f |
| 1.70 | 0/-0.010 | 3 | 45.1 | 46.6 | 80 | 25 x D | 3525SUH0170N | f |
| 1.80 | 0/-0.010 | 3 | 47.7 | 49.2 | 90 | 25 x D | 3525SUH0180N | f |
| 1.90 | 0/-0.010 | 3 | 50.4 | 51.9 | 90 | 25 x D | 3525SUH0190N | f |
| 2.00 | 0/-0.010 | 3 | 53 | 56 | 90 | 25 x D | 3525SUH0200N | h |
| 2.10 | 0/-0.010 | 3 | 55.7 | 58.8 | 100 | 25 x D | 3525SUH0210N | f |
| 2.20 | 0/-0.010 | 3 | 58.3 | 61.6 | 100 | 25 x D | 3525SUH0220N | f |
| 2.30 | 0/-0.010 | 3 | 61 | 64.4 | 100 | 25 x D | 3525SUH0230N | f |
| 2.40 | 0/-0.010 | 3 | 63.6 | 67.2 | 100 | 25 x D | 3525SUH0240N | f |
| 2.50 | 0/-0.010 | 3 | 66.3 | 70 | 110 | 25 x D | 3525SUH0250N | h |
| 2.60 | 0/-0.010 | 3 | 68.9 | 72.8 | 110 | 25 x D | 3525SUH0260N | f |
| 2.70 | 0/-0.010 | 3 | 71.6 | 75.6 | 110 | 25 x D | 3525SUH0270N | f |
| 2.80 | 0/-0.010 | 3 | 74.2 | 78.4 | 110 | 25 x D | 3525SUH0280N | f |
| 2.90 | 0/-0.010 | 3 | 76.9 | 81.2 | 120 | 25 x D | 3525SUH0290N | f |
| 3.00 | 0/-0.010 | 3 | 79.5 | 84 | 120 | 25 x D | 3525SUH0300N | h |
HSS END-MILLS
CARBIDE BURRS
h stock standard f non-standard stock m stock exhaustion
