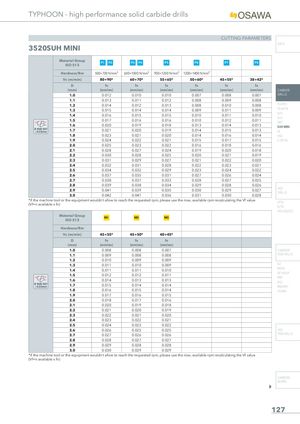

TYPHOON - high performance solid carbide drills

CUTTING PARAMETERS

	Material Group ISO 513	P1 P2	P3 P4	P5	P6	P7	P8
	Hardness/Rm	500÷700 N/mm²	600÷1000 N/mm²	900÷1200 N/mm²	1200÷1400 N/mm²
	Vc (m/min)	80÷90	60÷70	55÷65	50÷60	45÷55	38÷42
	D (mm)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)
	1.0	0.012	0.010	0.010	0.007	0.008	0.007
	1.1	0.013	0.011	0.012	0.008	0.009	0.008
	1.2	0.014	0.012	0.013	0.008	0.010	0.008
	1.3	0.015	0.014	0.014	0.009	0.011	0.009
	1.4	0.016	0.015	0.015	0.010	0.011	0.010
	1.5	0.017	0.016	0.016	0.010	0.012	0.011
	1.6	0.020	0.019	0.018	0.013	0.014	0.013
Ø RUN OUT	1.7	0.021	0.020	0.019	0.014	0.015	0.013
	1.8	0.023	0.021	0.020	0.014	0.016	0.014
	1.9	0.024	0.022	0.021	0.015	0.017	0.015
	2.0	0.025	0.023	0.022	0.016	0.018	0.016
	2.1	0.028	0.027	0.024	0.019	0.020	0.018
	2.2	0.030	0.028	0.025	0.020	0.021	0.019
	2.3	0.031	0.029	0.027	0.021	0.022	0.020
	2.4	0.032	0.031	0.028	0.022	0.023	0.021
	2.5	0.034	0.032	0.029	0.023	0.024	0.022
	2.6	0.037	0.035	0.031	0.027	0.026	0.024
	2.7	0.038	0.037	0.033	0.028	0.027	0.025
	2.8	0.039	0.038	0.034	0.029	0.028	0.026
	2.9	0.041	0.039	0.035	0.030	0.029	0.027
	3.0	0.042	0.041	0.036	0.031	0.030	0.028

Material Group M1 M2 M3

ISO 513

SUTA HSS-HSS/CO

	Material Group ISO 513	M1	M2	M3
	Hardness/Rm
	Vc (m/min)	45÷55	45÷50	40÷45
	D (mm)	fn (mm/rev)	fn (mm/rev)	fn (mm/rev)
	1.0	0.008	0.008	0.007
	1.1	0.009	0.008	0.008
	1.2	0.010	0.009	0.009
	1.3	0.011	0.010	0.009
	1.4	0.011	0.011	0.010
	1.5	0.012	0.012	0.011
	1.6	0.014	0.013	0.013
Ø RUN OUT	1.7	0.015	0.014	0.014
	1.8	0.016	0.015	0.014
	1.9	0.017	0.016	0.015
	2.0	0.018	0.017	0.016
	2.1	0.020	0.019	0.018
	2.2	0.021	0.020	0.019
	2.3	0.022	0.021	0.020
	2.4	0.023	0.022	0.021
	2.5	0.024	0.023	0.022
	2.6	0.026	0.025	0.025
	2.7	0.027	0.026	0.026
	2.8	0.028	0.027	0.027
	2.9	0.029	0.028	0.028
	3.0	0.030	0.029	0.029
