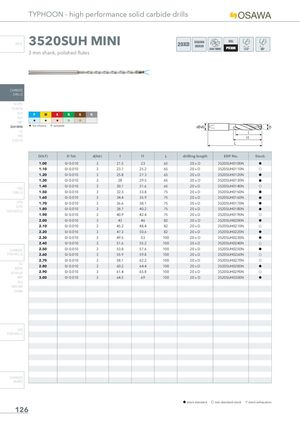

TYPHOON - high performance solid carbide drills INFO 3520SUH MINI 20XD OSAWANORM 135° 3 mm shank, polished flutes CARBIDE DRILLS PU-HPU TA-4HTA SUH P M K N S H ALH HRC H H H I I SUH MINI H 1st choice I suitable HL HSD C-SD-TA D(h7) D Tol. d(h6) l l1 L drilling length EDP No. Stock 1.00 0/-0.010 3 21.5 23 65 20 x D 3520SUH0100N h 1.10 0/-0.010 3 23.7 25.2 65 20 x D 3520SUH0110N f 1.20 0/-0.010 3 25.8 27.3 65 20 x D 3520SUH0120N h 1.30 0/-0.010 3 28 29.5 65 20 x D 3520SUH0130N h 1.40 0/-0.010 3 30.1 31.6 65 20 x D 3520SUH0140N f HSS DRILLS 1.50 0/-0.010 3 32.3 33.8 75 20 x D 3520SUH0150N h 1.60 0/-0.010 3 34.4 35.9 75 20 x D 3520SUH0160N h LFTA 1.70 0/-0.010 3 36.6 38.1 75 20 x D 3520SUH0170N h SUTAHSS-HSS/CO1.80 0/-0.010 3 38.7 40.2 75 20 x D 3520SUH0180N h 1.90 0/-0.010 3 40.9 42.4 75 20 x D 3520SUH0190N f 2.00 0/-0.010 3 43 46 82 20 x D 3520SUH0200N h 2.10 0/-0.010 3 45.2 48.4 82 20 x D 3520SUH0210N f 2.20 0/-0.010 3 47.3 50.6 82 20 x D 3520SUH0220N h 2.30 0/-0.010 3 49.5 53 100 20 x D 3520SUH0230N h 2.40 0/-0.010 3 51.6 55.2 100 20 x D 3520SUH0240N f CARBIDE 2.50 0/-0.010 3 53.8 57.6 100 20 x D 3520SUH0250N h END-MILLS 2.60 0/-0.010 3 55.9 59.8 100 20 x D 3520SUH0260N f 2.70 0/-0.010 3 58.1 62.2 100 20 x D 3520SUH0270N f G2 2.80 0/-0.010 3 60.2 64.4 100 20 x D 3520SUH0280N h MDTA HF VH/UP 2.90 0/-0.010 3 61.4 65.8 100 20 x D 3520SUH0290N f MEF 3.00 0/-0.010 3 64.5 69 100 20 x D 3520SUH0300N h ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 126
