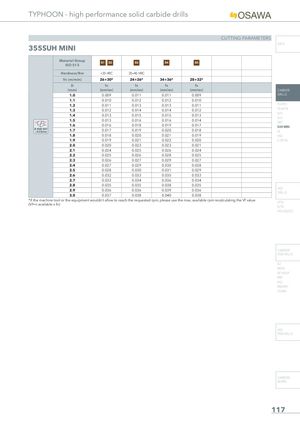

TYPHOON - high performance solid carbide drills CUTTING PARAMETERS INFO 355SUH MINI Material Group S1 S2 S3 S4 S5 ISO 513 Hardness/Rm <35 HRC 35÷45 HRC Vc (m/min) 26÷30* 24÷26* 34÷36* 28÷32* D fn fn fn fn (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev) CARBIDE 1.0 0.009 0.011 0.011 0.009 DRILLS 1.1 0.010 0.012 0.012 0.010 1.2 0.011 0.013 0.013 0.011 PU-HPU TA-4HTA 1.3 0.012 0.014 0.014 0.012 SUH 1.4 0.013 0.015 0.015 0.013 ALH 1.5 0.013 0.016 0.016 0.014 HRC 1.6 0.016 0.018 0.019 0.017 SUH MINI Ø RUN OUT 1.7 0.017 0.019 0.020 0.018 <0.02mm HL 1.8 0.018 0.020 0.021 0.019 HSD 1.9 0.019 0.021 0.022 0.020 C-SD-TA 2.0 0.020 0.023 0.023 0.021 2.1 0.024 0.025 0.026 0.024 2.2 0.025 0.026 0.028 0.025 2.3 0.026 0.027 0.029 0.027 2.4 0.027 0.029 0.030 0.028 2.5 0.028 0.030 0.031 0.029 2.6 0.032 0.033 0.035 0.033 2.7 0.033 0.034 0.036 0.034 2.8 0.035 0.035 0.038 0.035 HSS 2.9 0.036 0.036 0.039 0.036 DRILLS 3.0 0.037 0.038 0.040 0.038 *if the machine tool or the equipment wouldn’t allow to reach the requested rpm, please use the max. available rpm recalculating the Vf value LFTA (Vf=n available x fn) SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 117 Libro 1.indb 117 21/10/2021 12:08:41
