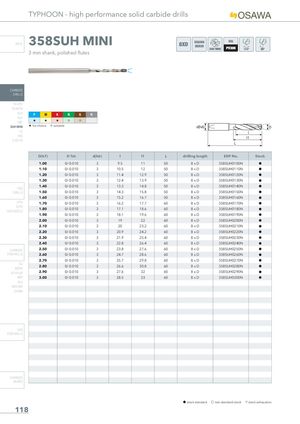

TYPHOON - high performance solid carbide drills

358SUH MINI

8XD OSAWA INFO NORM 135°

3 mm shank, polished flutes

CARBIDE DRILLS

PU-HPU TA-4HTA SUH ALH HRC SUH MINI HL HSD C-SD-TA

P	M	K	N	S	H
H	H	H	I	I

H 1st choice I suitable

D(h7)	D Tol.	d(h6)	l	l1	L	drilling length	EDP No.	Stock
1.00	0/-0.010	3	9.5	11	50	8 x D	358SUH0100N	h
1.10	0/-0.010	3	10.5	12	50	8 x D	358SUH0110N	h
1.20	0/-0.010	3	11.4	12.9	50	8 x D	358SUH0120N	h
1.30	0/-0.010	3	12.4	13.9	50	8 x D	358SUH0130N	h
1.40	0/-0.010	3	13.3	14.8	50	8 x D	358SUH0140N	h
1.50	0/-0.010	3	14.3	15.8	50	8 x D	358SUH0150N	h
1.60	0/-0.010	3	15.2	16.7	50	8 x D	358SUH0160N	h
1.70	0/-0.010	3	16.2	17.7	60	8 x D	358SUH0170N	h
1.80	0/-0.010	3	17.1	18.6	60	8 x D	358SUH0180N	h
1.90	0/-0.010	3	18.1	19.6	60	8 x D	358SUH0190N	h
2.00	0/-0.010	3	19	22	60	8 x D	358SUH0200N	h
2.10	0/-0.010	3	20	23.2	60	8 x D	358SUH0210N	h
2.20	0/-0.010	3	20.9	24.2	60	8 x D	358SUH0220N	h
2.30	0/-0.010	3	21.9	25.4	60	8 x D	358SUH0230N	h
2.40	0/-0.010	3	22.8	26.4	60	8 x D	358SUH0240N	h
2.50	0/-0.010	3	23.8	27.6	60	8 x D	358SUH0250N	h
2.60	0/-0.010	3	24.7	28.6	60	8 x D	358SUH0260N	h
2.70	0/-0.010	3	25.7	29.8	60	8 x D	358SUH0270N	h
2.80	0/-0.010	3	26.6	30.8	60	8 x D	358SUH0280N	h
2.90	0/-0.010	3	27.6	32	60	8 x D	358SUH0290N	h
3.00	0/-0.010	3	28.5	33	60	8 x D	358SUH0300N	h

HSS END-MILLS

CARBIDE BURRS

h stock standard f non-standard stock m stock exhaustion
