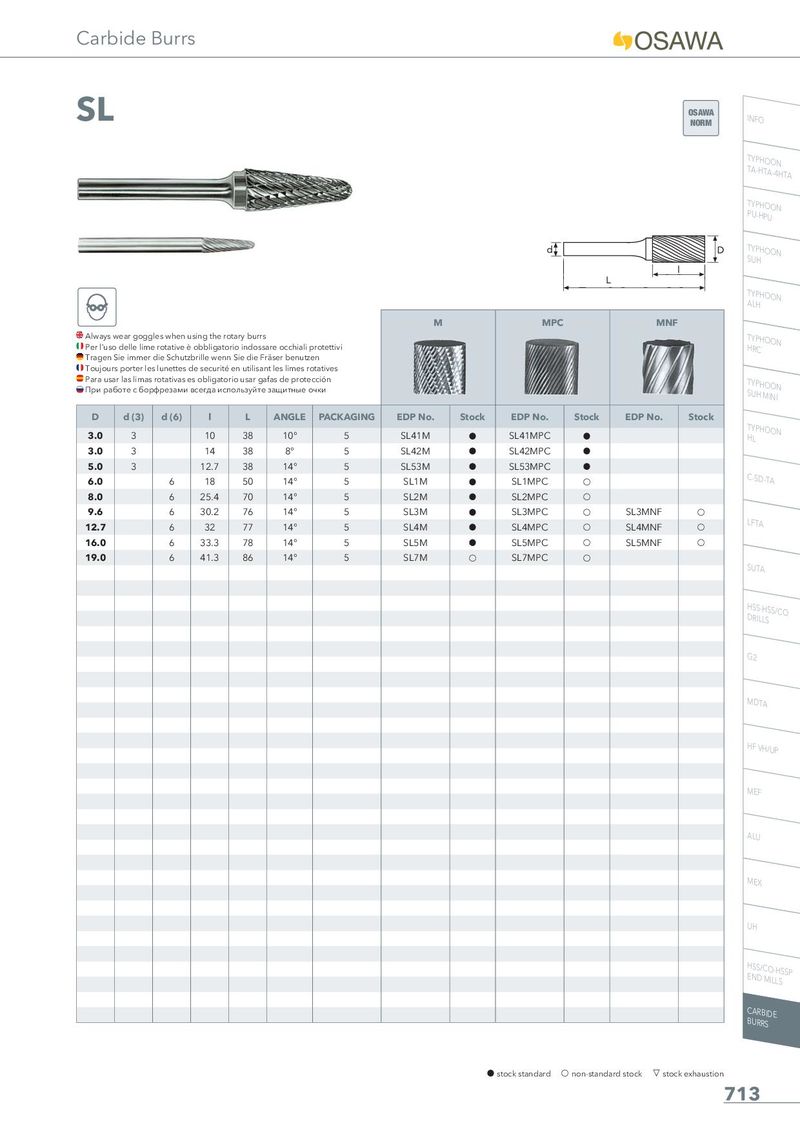

Общий каталог Osawa 2018 - страница 715
Навигация
Общий каталог Osawa 2021
SL
OSAWA NORM INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| M | MPC | MN | F | |||||||||
| Always Per l’uso Tragen Toujour Para usa При ра | wear gogg delle lim Sie immer s porter le r las limas боте с бор | les when e rotative è die Schutz s lunettes rotativas фрезами | using the ro obbligato brille wenn de securité es obligator всегда исп | tary burr rio indoss Sie die F en utilisa io usar g ользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные | protettivi en otatives cción очки | ||||||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| 3.0 | 3 | 10 | 38 | 10° | 5 | SL41M | h | SL41MPC | h | |||
| 3.0 | 3 | 14 | 38 | 8° | 5 | SL42M | h | SL42MPC | h | |||
| 5.0 | 3 | 12.7 | 38 | 14° | 5 | SL53M | h | SL53MPC | h | |||
| 6.0 | 6 | 18 | 50 | 14° | 5 | SL1M | h | SL1MPC | f | |||
| 8.0 | 6 | 25.4 | 70 | 14° | 5 | SL2M | h | SL2MPC | f | |||
| 9.6 | 6 | 30.2 | 76 | 14° | 5 | SL3M | h | SL3MPC | f | SL3MNF | f | |
| 12.7 | 6 | 32 | 77 | 14° | 5 | SL4M | h | SL4MPC | f | SL4MNF | f | |
| 16.0 | 6 | 33.3 | 78 | 14° | 5 | SL5M | h | SL5MPC | f | SL5MNF | f | |
| 19.0 | 6 | 41.3 | 86 | 14° | 5 | SL7M | f | SL7MPC | f |
TYPHOON
C-SD-TA
LFTA
SUTA
HSS-HSS/CO DRILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE BURRS
