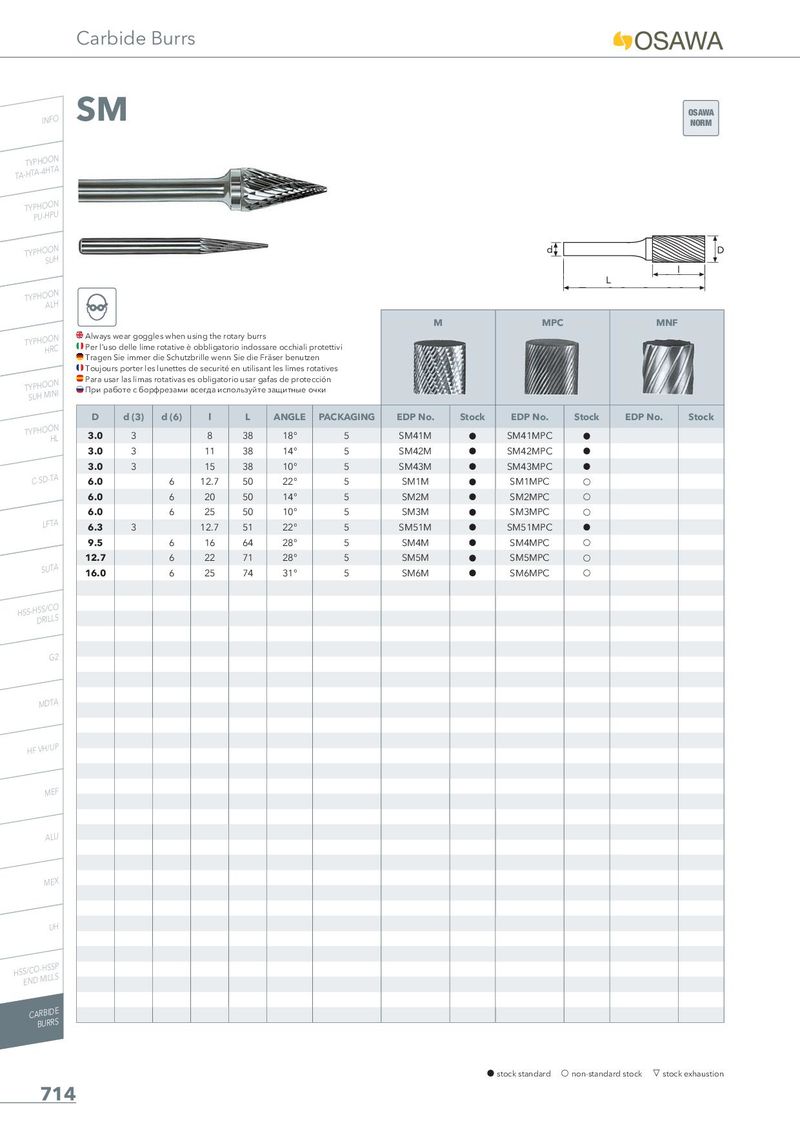

Общий каталог Osawa 2018 - страница 716
Навигация
Общий каталог Osawa 2021
SM
OSAWA INFO NORM
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| Always Per l’uso Tragen Toujour Para usa При раб | wear gog delle lim Sie immer s porter le r las lima оте с бо | gles when u e rotative è die Schutz s lunettes s rotativas e рфрезами | sing the ro obbligato brille wenn de securité s obligato всегда исп | tary burr rio indoss Sie die F en utilisa rio usar g ользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные о | protettivi en otatives cción чки | M | MPC | MNF | ||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. Stock |
| 3.0 | 3 | 8 | 38 | 18° | 5 | SM41M | h | SM41MPC | h | ||
| 3.0 | 3 | 11 | 38 | 14° | 5 | SM42M | h | SM42MPC | h | ||
| 3.0 | 3 | 15 | 38 | 10° | 5 | SM43M | h | SM43MPC | h | ||
| 6.0 | 6 | 12.7 | 50 | 22° | 5 | SM1M | h | SM1MPC | f | ||
| 6.0 | 6 | 20 | 50 | 14° | 5 | SM2M | h | SM2MPC | f | ||
| 6.0 | 6 | 25 | 50 | 10° | 5 | SM3M | h | SM3MPC | f | ||
| 6.3 | 3 | 12.7 | 51 | 22° | 5 | SM51M | h | SM51MPC | h | ||
| 9.5 | 6 | 16 | 64 | 28° | 5 | SM4M | h | SM4MPC | f | ||
| 12.7 | 6 | 22 | 71 | 28° | 5 | SM5M | h | SM5MPC | f | ||
| 16.0 | 6 | 25 | 74 | 31° | 5 | SM6M | h | SM6MPC | f |
