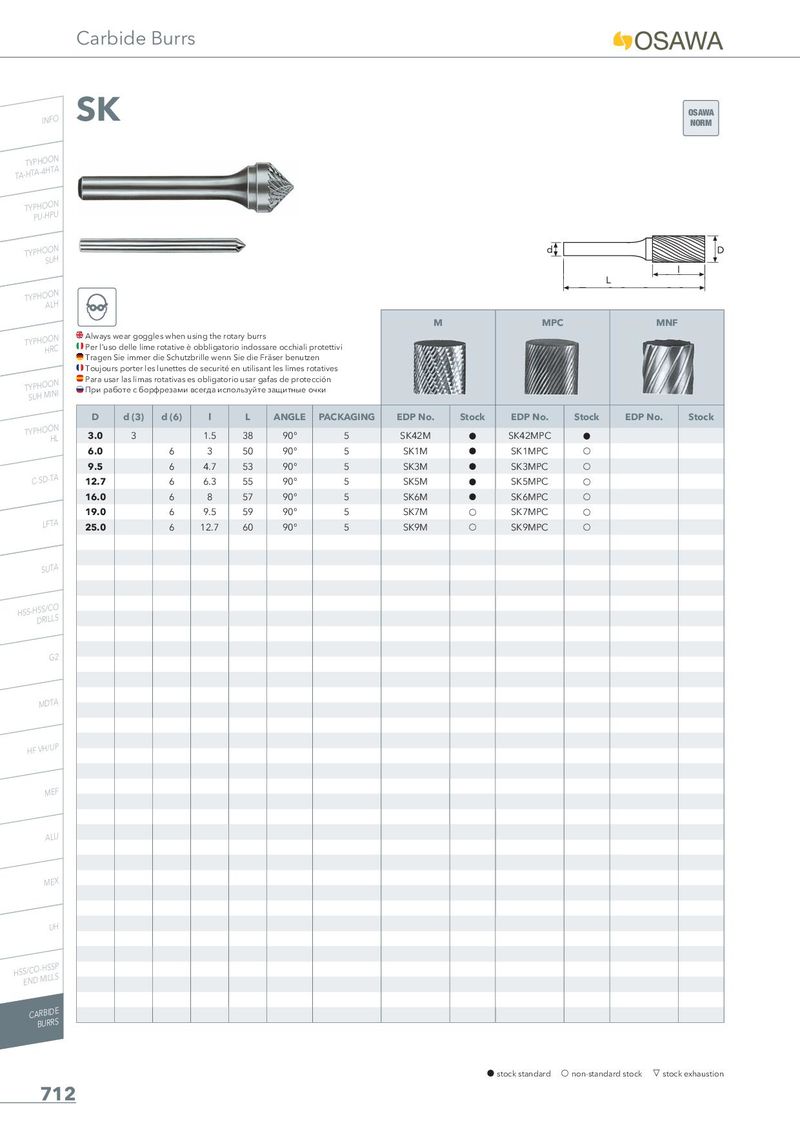

SK
OSAWA INFO NORM
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| Always Per l’uso Tragen Toujour Para usa При раб | wear gog delle lim Sie immer s porter le r las lima оте с бо | gles when u e rotative è die Schutz s lunettes s rotativas e рфрезами | sing the ro obbligato brille wenn de securité s obligato всегда исп | tary burr rio indoss Sie die F en utilisa rio usar g ользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные о | protettivi en otatives cción чки | M | MPC | MNF | ||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. Stock |
| 3.0 | 3 | 1.5 | 38 | 90° | 5 | SK42M | h | SK42MPC | h | ||
| 6.0 | 6 | 3 | 50 | 90° | 5 | SK1M | h | SK1MPC | f | ||
| 9.5 | 6 | 4.7 | 53 | 90° | 5 | SK3M | h | SK3MPC | f | ||
| 12.7 | 6 | 6.3 | 55 | 90° | 5 | SK5M | h | SK5MPC | f | ||
| 16.0 | 6 | 8 | 57 | 90° | 5 | SK6M | h | SK6MPC | f | ||
| 19.0 | 6 | 9.5 | 59 | 90° | 5 | SK7M | f | SK7MPC | f | ||
| 25.0 | 6 | 12.7 | 60 | 90° | 5 | SK9M | f | SK9MPC | f |
