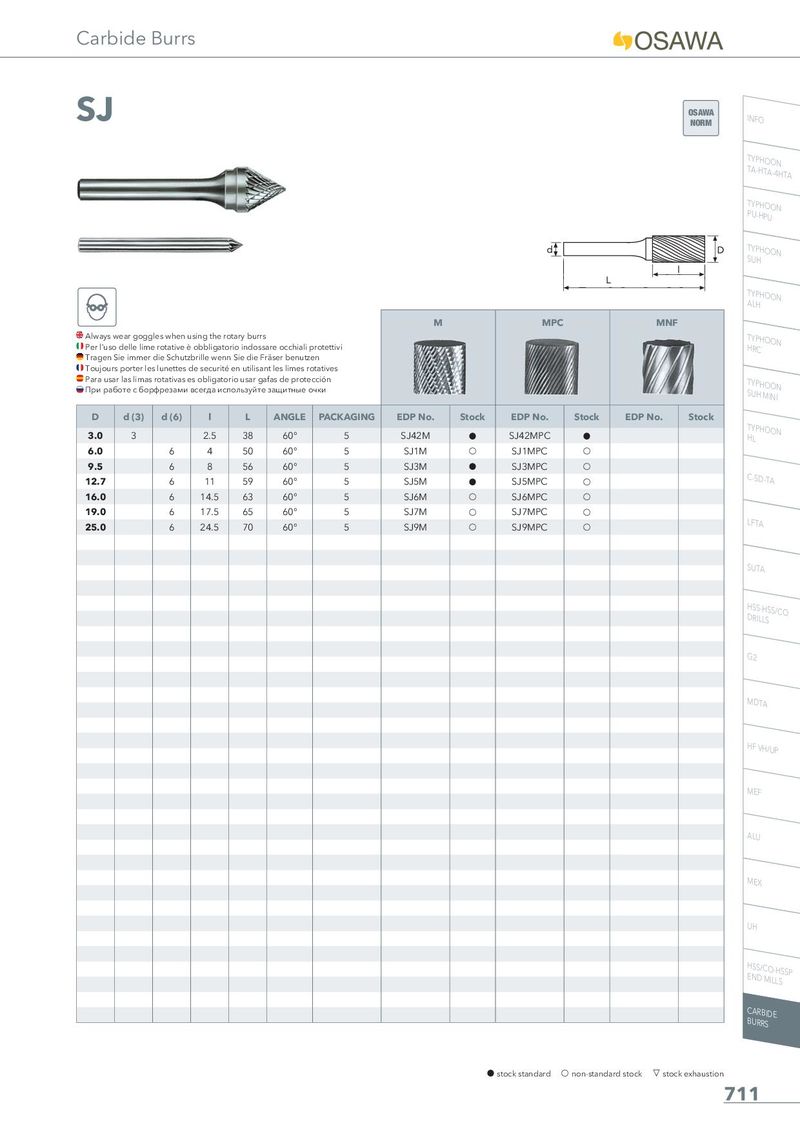

Общий каталог Osawa 2018 - страница 713
Навигация
Общий каталог Osawa 2021
SJ
OSAWA NORM INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| M | MPC | MNF | |||||||||
| Always Per l’uso Tragen Toujour Para usa При ра | wear gogg delle lim Sie immer s porter le r las limas боте с бо | les when u e rotative è die Schutz s lunettes rotativas e рфрезами | sing the ro obbligato brille wenn de securité s obligator всегда исп | tary burr rio indoss Sie die F en utilisa io usar g ользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные о | protettivi en otatives cción чки | |||||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. Stock |
| 3.0 | 3 | 2.5 | 38 | 60° | 5 | SJ42M | h | SJ42MPC | h | ||
| 6.0 | 6 | 4 | 50 | 60° | 5 | SJ1M | f | SJ1MPC | f | ||
| 9.5 | 6 | 8 | 56 | 60° | 5 | SJ3M | h | SJ3MPC | f | ||
| 12.7 | 6 | 11 | 59 | 60° | 5 | SJ5M | h | SJ5MPC | f | ||
| 16.0 | 6 | 14.5 | 63 | 60° | 5 | SJ6M | f | SJ6MPC | f | ||
| 19.0 | 6 | 17.5 | 65 | 60° | 5 | SJ7M | f | SJ7MPC | f | ||
| 25.0 | 6 | 24.5 | 70 | 60° | 5 | SJ9M | f | SJ9MPC | f |
TYPHOON
C-SD-TA
LFTA
SUTA
HSS-HSS/CO DRILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE BURRS
