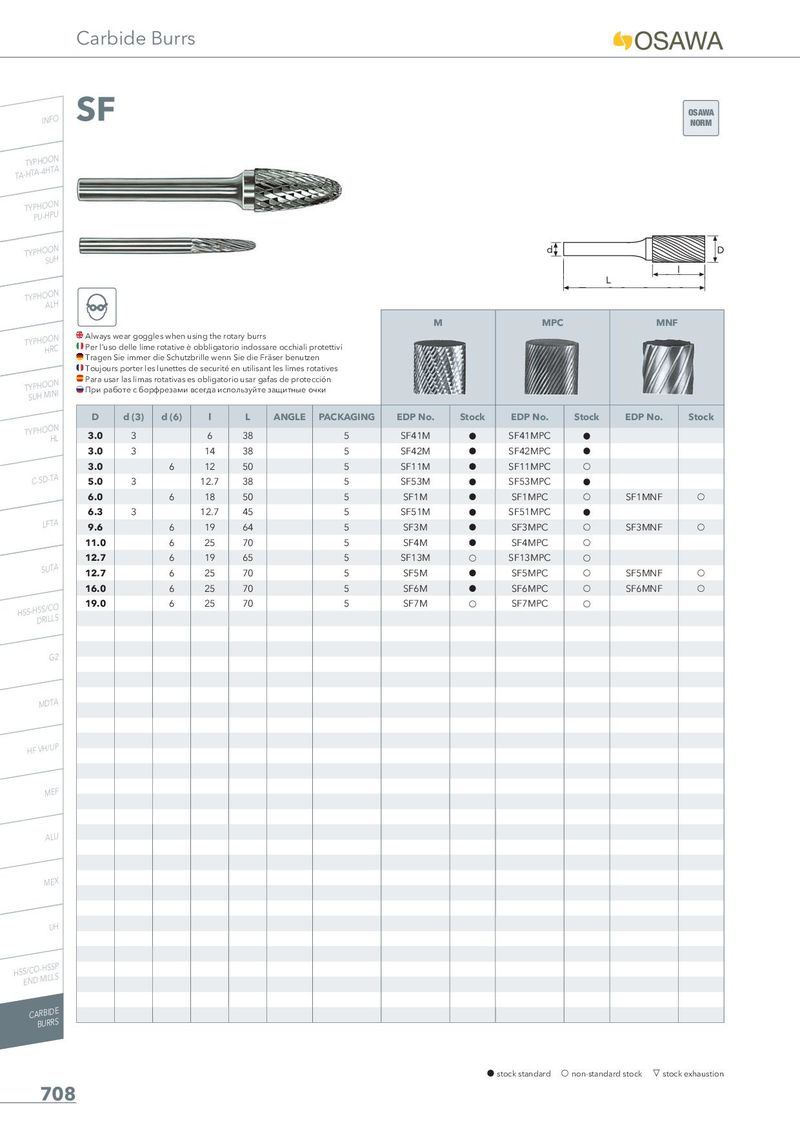

SF
OSAWA INFO NORM
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| Always Per l’uso Tragen Toujour Para usa При раб | wear gog delle lim Sie immer s porter le r las lima оте с бо | gles when u e rotative è die Schutz s lunettes s rotativas e рфрезами | sing the ro obbligato brille wenn de securité s obligato всегда исп | tary burr rio indoss Sie die F en utilisa rio usar g ользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные о | protettivi en otatives cción чки | M | MPC | MNF | |||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| 3.0 | 3 | 6 | 38 | 5 | SF41M | h | SF41MPC | h | ||||
| 3.0 | 3 | 14 | 38 | 5 | SF42M | h | SF42MPC | h | ||||
| 3.0 | 6 | 12 | 50 | 5 | SF11M | h | SF11MPC | f | ||||
| 5.0 | 3 | 12.7 | 38 | 5 | SF53M | h | SF53MPC | h | ||||
| 6.0 | 6 | 18 | 50 | 5 | SF1M | h | SF1MPC | f | SF1MNF | f | ||
| 6.3 | 3 | 12.7 | 45 | 5 | SF51M | h | SF51MPC | h | ||||
| 9.6 | 6 | 19 | 64 | 5 | SF3M | h | SF3MPC | f | SF3MNF | f | ||
| 11.0 | 6 | 25 | 70 | 5 | SF4M | h | SF4MPC | f | ||||
| 12.7 | 6 | 19 | 65 | 5 | SF13M | f | SF13MPC | f | ||||
| 12.7 | 6 | 25 | 70 | 5 | SF5M | h | SF5MPC | f | SF5MNF | f | ||
| 16.0 | 6 | 25 | 70 | 5 | SF6M | h | SF6MPC | f | SF6MNF | f | ||
| 19.0 | 6 | 25 | 70 | 5 | SF7M | f | SF7MPC | f |
HRC
SUH MINI
HL
HSS-HSS/CO DRILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE
