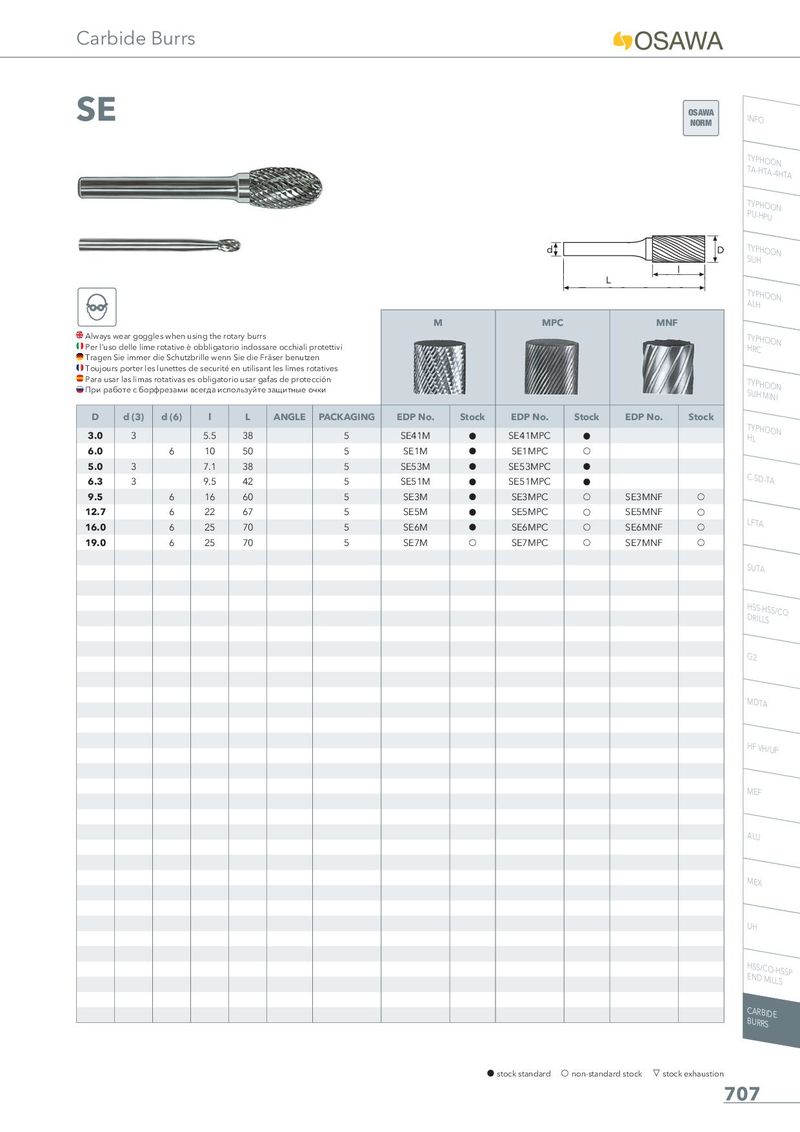

Общий каталог Osawa 2018 - страница 709
Навигация
Общий каталог Osawa 2021
SE
OSAWA NORM INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| M | MPC | MN | F | |||||||||
| Always Per l’uso Tragen Toujour Para usa При ра | wear gogg delle lim Sie immer s porter le r las limas боте с бо | les when u e rotative è die Schutz s lunettes rotativas e рфрезами | sing the r obbligato brille wen de securité s obligato всегда ис | otary burr rio indoss nSiedieF en utilisa rio usar g пользуйте | s are occhiali räser benutz nt les limes r afas de prote защитные о | protettivi en otatives cción чки | ||||||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| 3.0 | 3 | 5.5 | 38 | 5 | SE41M | h | SE41MPC | h | ||||
| 6.0 | 6 | 10 | 50 | 5 | SE1M | h | SE1MPC | f | ||||
| 5.0 | 3 | 7.1 | 38 | 5 | SE53M | h | SE53MPC | h | ||||
| 6.3 | 3 | 9.5 | 42 | 5 | SE51M | h | SE51MPC | h | ||||
| 9.5 | 6 | 16 | 60 | 5 | SE3M | h | SE3MPC | f | SE3MNF | f | ||
| 12.7 | 6 | 22 | 67 | 5 | SE5M | h | SE5MPC | f | SE5MNF | f | ||
| 16.0 | 6 | 25 | 70 | 5 | SE6M | h | SE6MPC | f | SE6MNF | f | ||
| 19.0 | 6 | 25 | 70 | 5 | SE7M | f | SE7MPC | f | SE7MNF | f |
TYPHOON
C-SD-TA
LFTA
SUTA
HSS-HSS/CO DRILLS
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE BURRS
