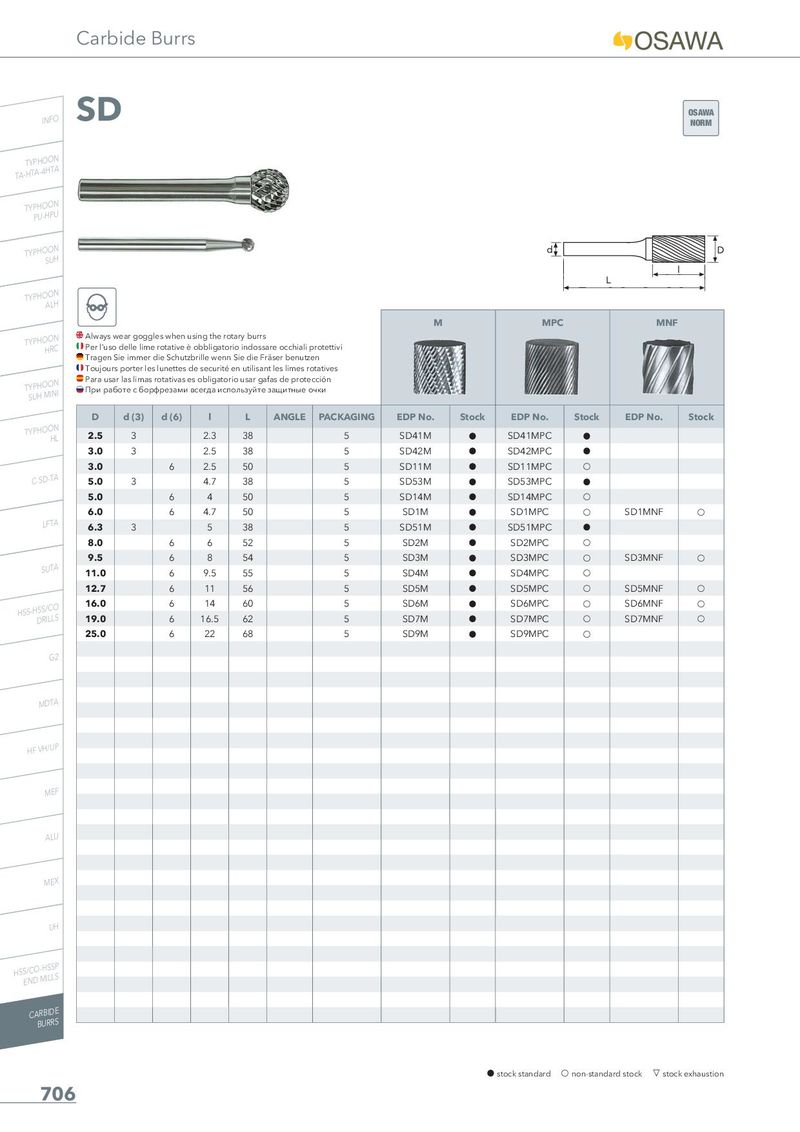

| Always Per l’uso Tragen Toujour Para usa При ра | wear gogg delle lim Sie immer s porter le r las limas боте с бор | les when u e rotative è die Schutz s lunettes rotativas e фрезами | sing the ro obbligato brille wenn de securité s obligato всегда исп | tary burrs rio indoss Sie die Fr en utilisan rio usar ga ользуйте | are occhiali p äser benutz t les limes ro fas de prote защитные о | rotettivi en tatives cción чки | M | MPC | MNF | |||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| 2.5 | 3 | 2.3 | 38 | 5 | SD41M | h | SD41MPC | h | ||||
| 3.0 | 3 | 2.5 | 38 | 5 | SD42M | h | SD42MPC | h | ||||
| 3.0 | 6 | 2.5 | 50 | 5 | SD11M | h | SD11MPC | f | ||||
| 5.0 | 3 | 4.7 | 38 | 5 | SD53M | h | SD53MPC | h | ||||
| 5.0 | 6 | 4 | 50 | 5 | SD14M | h | SD14MPC | f | ||||
| 6.0 | 6 | 4.7 | 50 | 5 | SD1M | h | SD1MPC | f | SD1MNF | f | ||
| 6.3 | 3 | 5 | 38 | 5 | SD51M | h | SD51MPC | h | ||||
| 8.0 | 6 | 6 | 52 | 5 | SD2M | h | SD2MPC | f | ||||
| 9.5 | 6 | 8 | 54 | 5 | SD3M | h | SD3MPC | f | SD3MNF | f | ||
| 11.0 | 6 | 9.5 | 55 | 5 | SD4M | h | SD4MPC | f | ||||
| 12.7 | 6 | 11 | 56 | 5 | SD5M | h | SD5MPC | f | SD5MNF | f | ||
| 16.0 | 6 | 14 | 60 | 5 | SD6M | h | SD6MPC | f | SD6MNF | f | ||
| 19.0 | 6 | 16.5 | 62 | 5 | SD7M | h | SD7MPC | f | SD7MNF | f | ||
| 25.0 | 6 | 22 | 68 | 5 | SD9M | h | SD9MPC | f |
