SB
OSAWA INFO NORM
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
M MPC MNF
Always wear goggles when using the rotary burrs TYPHOON Per l’uso delle lime rotative è obbligatorio indossare occhiali protettivi HRC Tragen Sie immer die Schutzbrille wenn Sie die Fräser benutzen
Toujours porter les lunettes de securité en utilisant les limes rotatives Para usar las limas rotativas es obligatorio usar gafas de protección TYPHOON При работе с борфрезами всегда используйте защитные очки SUH MINI

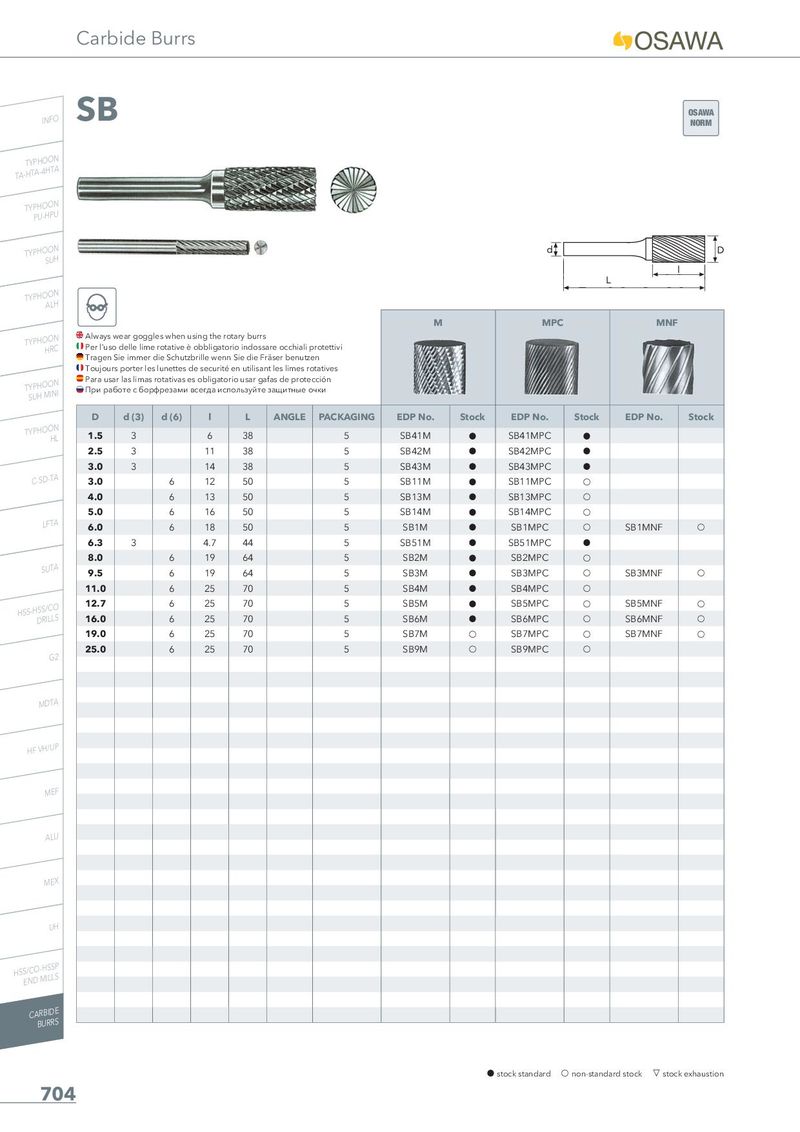

| D | d (3) | d (6) | l | L | PACKAGING ANGLE | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| TYPHOON 1.5 | 3 | 6 | 38 | 5 | SB41M | h | SB41MPC | h | |||
| HL | |||||||||||
| 2.5 | 3 | 11 | 38 | 5 | SB42M | h | SB42MPC | h | |||
| 3.0 | 3 | 14 | 38 | 5 | SB43M | h | SB43MPC | h | |||
| C-SD-TA 3.0 | 6 | 12 | 50 | 5 | SB11M | h | SB11MPC | f | |||
| 4.0 | 6 | 13 | 50 | 5 | SB13M | h | SB13MPC | f | |||
| 5.0 | 6 | 16 | 50 | 5 | SB14M | h | SB14MPC | f | |||
| LFTA 6.0 | 6 | 18 | 50 | 5 | SB1M | h | SB1MPC | f | SB1MNF | f | |
| 6.3 | 3 | 4.7 | 44 | 5 | SB51M | h | SB51MPC | h | |||
| 8.0 | 6 | 19 | 64 | 5 | SB2M | h | SB2MPC | f | |||
| SUTA 9.5 | 6 | 19 | 64 | 5 | SB3M | h | SB3MPC | f | SB3MNF | f | |
| 11.0 | 6 | 25 | 70 | 5 | SB4M | h | SB4MPC | f | |||
| 12.7 | 6 | 25 | 70 | 5 | SB5M | h | SB5MPC | f | SB5MNF | f | |
| HSS-HSS/CO | |||||||||||
| DRILLS 16.0 | 6 | 25 | 70 | 5 | SB6M | h | SB6MPC | f | SB6MNF | f | |
| 19.0 | 6 | 25 | 70 | 5 | SB7M | f | SB7MPC | f | SB7MNF | f | |
| 25.0 | 6 | 25 | 70 | 5 | SB9M | f | SB9MPC | f |
