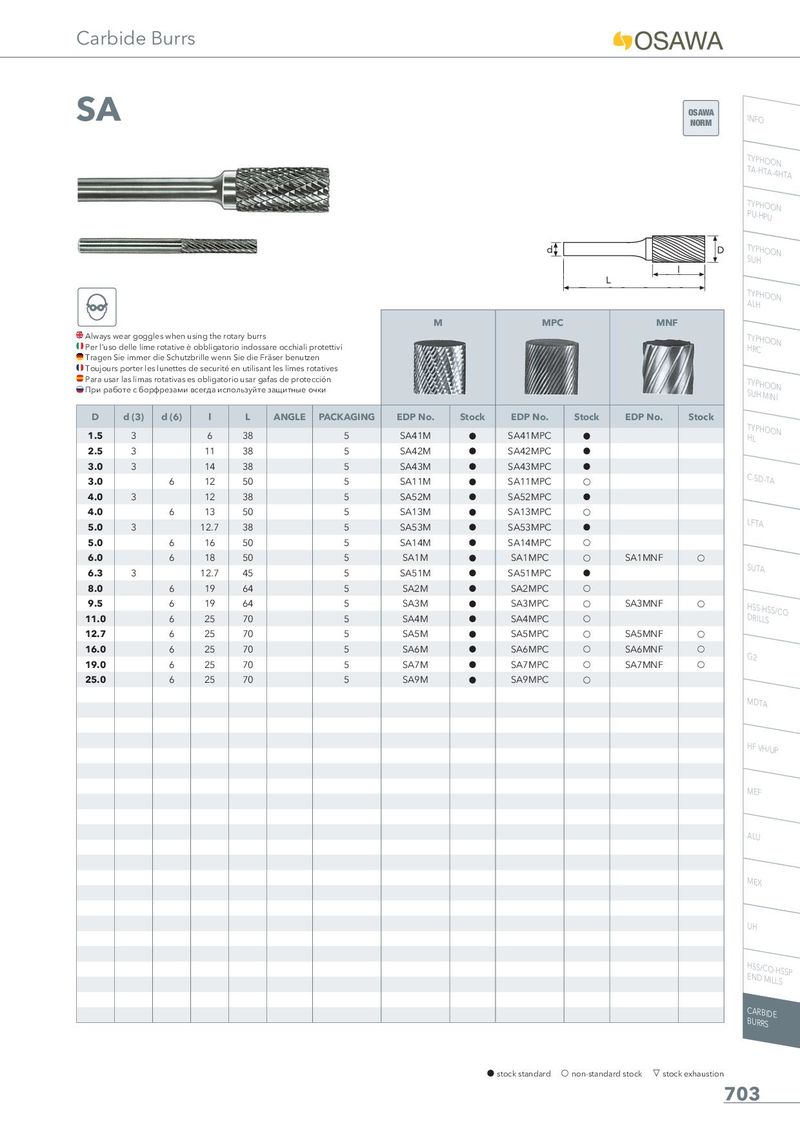

Общий каталог Osawa 2018 - страница 705
Навигация
Общий каталог Osawa 2021
SA
OSAWA NORM INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| Always Per l’uso Tragen Toujour Para usa При ра | wear gogg delle lime Sie immer s porter le r las limas боте с бор | les when u rotative è die Schutz s lunettes rotativas e фрезами | sing the ro obbligato brille wenn de securité s obligato всегда исп | tary burrs rio indoss Sie die Fr en utilisan rio usar ga ользуйте | are occhiali p äser benutz t les limes ro fas de prote защитные о | rotettivi en tatives cción чки | M | MPC | MNF | |||
| D | d (3) | d (6) | l | L | ANGLE | PACKAGING | EDP No. | Stock | EDP No. | Stock | EDP No. | Stock |
| 1.5 | 3 | 6 | 38 | 5 | SA41M | h | SA41MPC | h | ||||
| 2.5 | 3 | 11 | 38 | 5 | SA42M | h | SA42MPC | h | ||||
| 3.0 | 3 | 14 | 38 | 5 | SA43M | h | SA43MPC | h | ||||
| 3.0 | 6 | 12 | 50 | 5 | SA11M | h | SA11MPC | f | ||||
| 4.0 | 3 | 12 | 38 | 5 | SA52M | h | SA52MPC | h | ||||
| 4.0 | 6 | 13 | 50 | 5 | SA13M | h | SA13MPC | f | ||||
| 5.0 | 3 | 12.7 | 38 | 5 | SA53M | h | SA53MPC | h | ||||
| 5.0 | 6 | 16 | 50 | 5 | SA14M | h | SA14MPC | f | ||||
| 6.0 | 6 | 18 | 50 | 5 | SA1M | h | SA1MPC | f | SA1MNF | f | ||
| 6.3 | 3 | 12.7 | 45 | 5 | SA51M | h | SA51MPC | h | ||||
| 8.0 | 6 | 19 | 64 | 5 | SA2M | h | SA2MPC | f | ||||
| 9.5 | 6 | 19 | 64 | 5 | SA3M | h | SA3MPC | f | SA3MNF | f | ||
| 11.0 | 6 | 25 | 70 | 5 | SA4M | h | SA4MPC | f | ||||
| 12.7 | 6 | 25 | 70 | 5 | SA5M | h | SA5MPC | f | SA5MNF | f | ||
| 16.0 | 6 | 25 | 70 | 5 | SA6M | h | SA6MPC | f | SA6MNF | f | ||
| 19.0 | 6 | 25 | 70 | 5 | SA7M | h | SA7MPC | f | SA7MNF | f | ||
| 25.0 | 6 | 25 | 70 | 5 | SA9M | h | SA9MPC | f |
TYPHOON
C-SD-TA
LFTA
SUTA
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE BURRS
