Общий каталог Osawa 2021

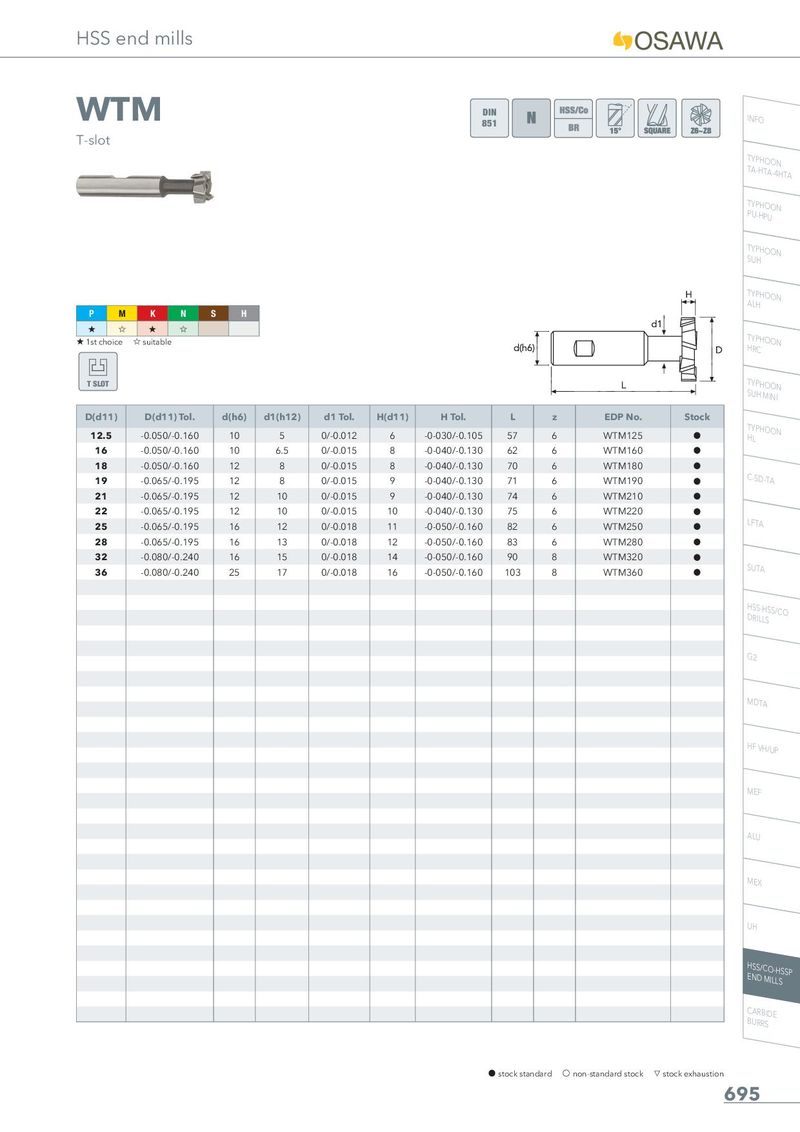

WTM
T-slot
DIN 851
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| P M � � | K N � � | S H | ||||||||
| �1st choice T SLOT | �suitable | |||||||||
| D(d11) | D(d11) Tol. | d(h6) | d1(h12) | d1 Tol. | H(d11) | H Tol. | L | z | EDP No. | Stock |
| 12.5 | -0.050/-0.160 | 10 | 5 | 0/-0.012 | 6 | -0-030/-0.105 | 57 | 6 | WTM125 | h |
| 16 | -0.050/-0.160 | 10 | 6.5 | 0/-0.015 | 8 | -0-040/-0.130 | 62 | 6 | WTM160 | h |
| 18 | -0.050/-0.160 | 12 | 8 | 0/-0.015 | 8 | -0-040/-0.130 | 70 | 6 | WTM180 | h |
| 19 | -0.065/-0.195 | 12 | 8 | 0/-0.015 | 9 | -0-040/-0.130 | 71 | 6 | WTM190 | h |
| 21 | -0.065/-0.195 | 12 | 10 | 0/-0.015 | 9 | -0-040/-0.130 | 74 | 6 | WTM210 | h |
| 22 | -0.065/-0.195 | 12 | 10 | 0/-0.015 | 10 | -0-040/-0.130 | 75 | 6 | WTM220 | h |
| 25 | -0.065/-0.195 | 16 | 12 | 0/-0.018 | 11 | -0-050/-0.160 | 82 | 6 | WTM250 | h |
| 28 | -0.065/-0.195 | 16 | 13 | 0/-0.018 | 12 | -0-050/-0.160 | 83 | 6 | WTM280 | h |
| 32 | -0.080/-0.240 | 16 | 15 | 0/-0.018 | 14 | -0-050/-0.160 | 90 | 8 | WTM320 | h |
| 36 | -0.080/-0.240 | 25 | 17 | 0/-0.018 | 16 | -0-050/-0.160 | 103 | 8 | WTM360 | h |
