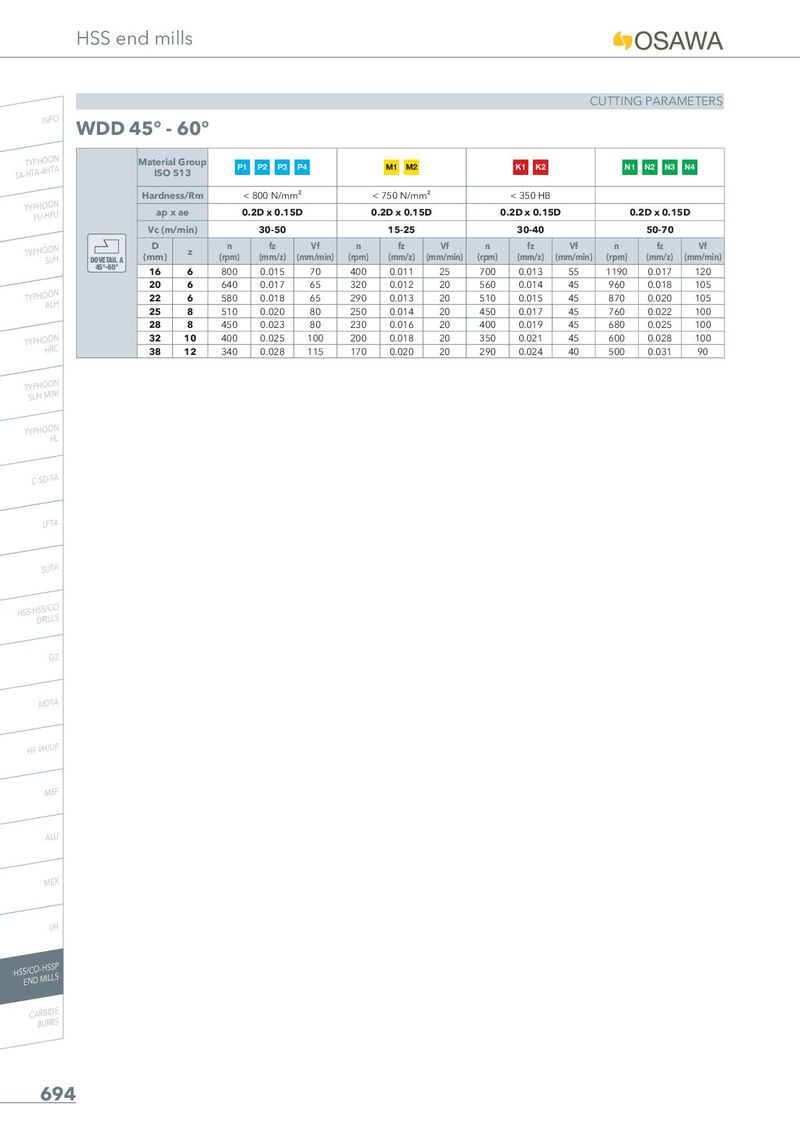

CUTTING PARAMETERS

INFO WDD 45° - 60°

M	ateria ISO	l Group 513	P1	P2 P3	P4		M1 M2			K1 K2		N1	N2 N3	N4
H	ardne	ss/Rm		800 N/mm	²		750 N/mm	²		< 350 HB
	ap x	ae	0	.2D x 0.15	D	0	.2D x 0.15	D	0	.2D x 0.15	D	0	.2D x 0.15	D
	Vc (m	/min)		30-50			15-25			30-40			50-70
DOVETAIL A (	D mm)	z	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
45°-60°	16	6	800	0.015	70	400	0.011	25	700	0.013	55	1190	0.017	120
	20	6	640	0.017	65	320	0.012	20	560	0.014	45	960	0.018	105
	22	6	580	0.018	65	290	0.013	20	510	0.015	45	870	0.020	105
	25	8	510	0.020	80	250	0.014	20	450	0.017	45	760	0.022	100
	28	8	450	0.023	80	230	0.016	20	400	0.019	45	680	0.025	100
	32	10	400	0.025	100	200	0.018	20	350	0.021	45	600	0.028	100
	38	12	340	0.028	115	170	0.020	20	290	0.024	40	500	0.031	90
