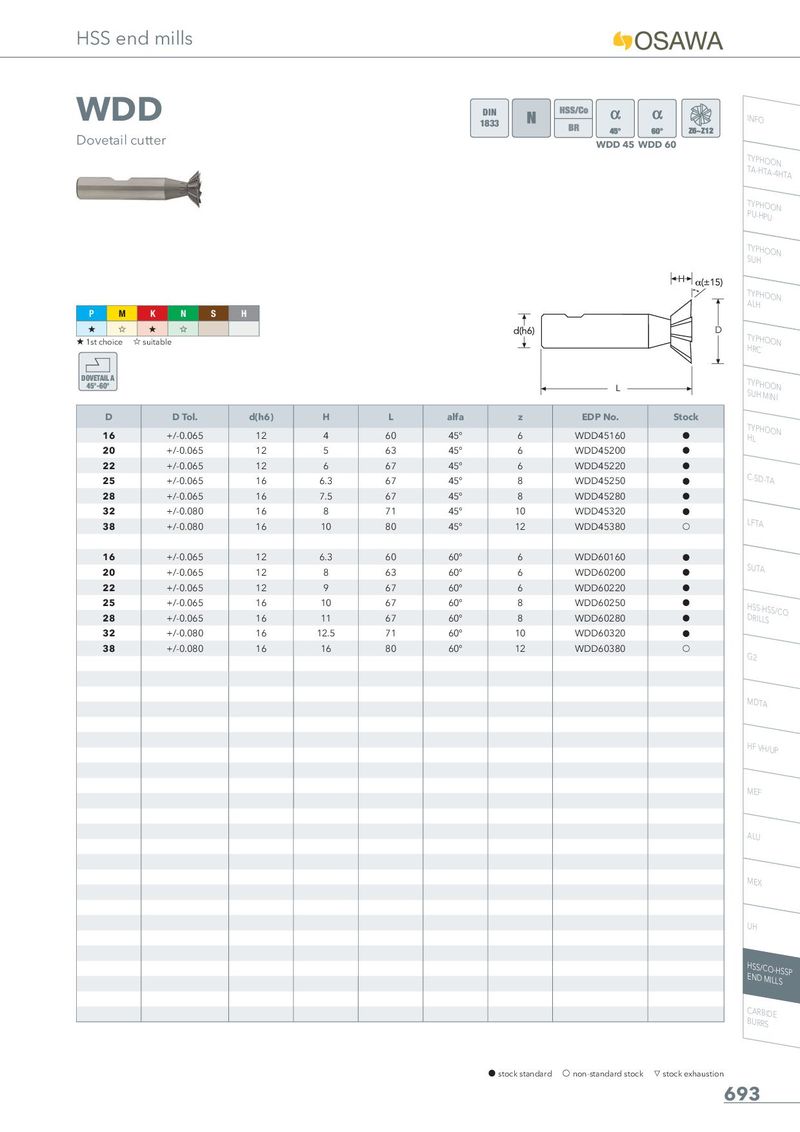

WDD
Dovetail cutter
DIN 1833
WDD 45 WDD 60
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
| P M | K N S | H | H | |||||
| � � | � � | D | ||||||
| �1st choice DOVETAIL A 45°-60° | �suitable | |||||||
| D | D Tol. | d(h6) | H | L | alfa | z | EDP No. | Stock |
| 16 | +/-0.065 | 12 | 4 | 60 | 45° | 6 | WDD45160 | h |
| 20 | +/-0.065 | 12 | 5 | 63 | 45° | 6 | WDD45200 | h |
| 22 | +/-0.065 | 12 | 6 | 67 | 45° | 6 | WDD45220 | h |
| 25 | +/-0.065 | 16 | 6.3 | 67 | 45° | 8 | WDD45250 | h |
| 28 | +/-0.065 | 16 | 7.5 | 67 | 45° | 8 | WDD45280 | h |
| 32 | +/-0.080 | 16 | 8 | 71 | 45° | 10 | WDD45320 | h |
| 38 | +/-0.080 | 16 | 10 | 80 | 45° | 12 | WDD45380 | f |
| 16 | +/-0.065 | 12 | 6.3 | 60 | 60° | 6 | WDD60160 | h |
| 20 | +/-0.065 | 12 | 8 | 63 | 60° | 6 | WDD60200 | h |
| 22 | +/-0.065 | 12 | 9 | 67 | 60° | 6 | WDD60220 | h |
| 25 | +/-0.065 | 16 | 10 | 67 | 60° | 8 | WDD60250 | h |
| 28 | +/-0.065 | 16 | 11 | 67 | 60° | 8 | WDD60280 | h |
| 32 | +/-0.080 | 16 | 12.5 | 71 | 60° | 10 | WDD60320 | h |
| 38 | +/-0.080 | 16 | 16 | 80 | 60° | 12 | WDD60380 | f |
