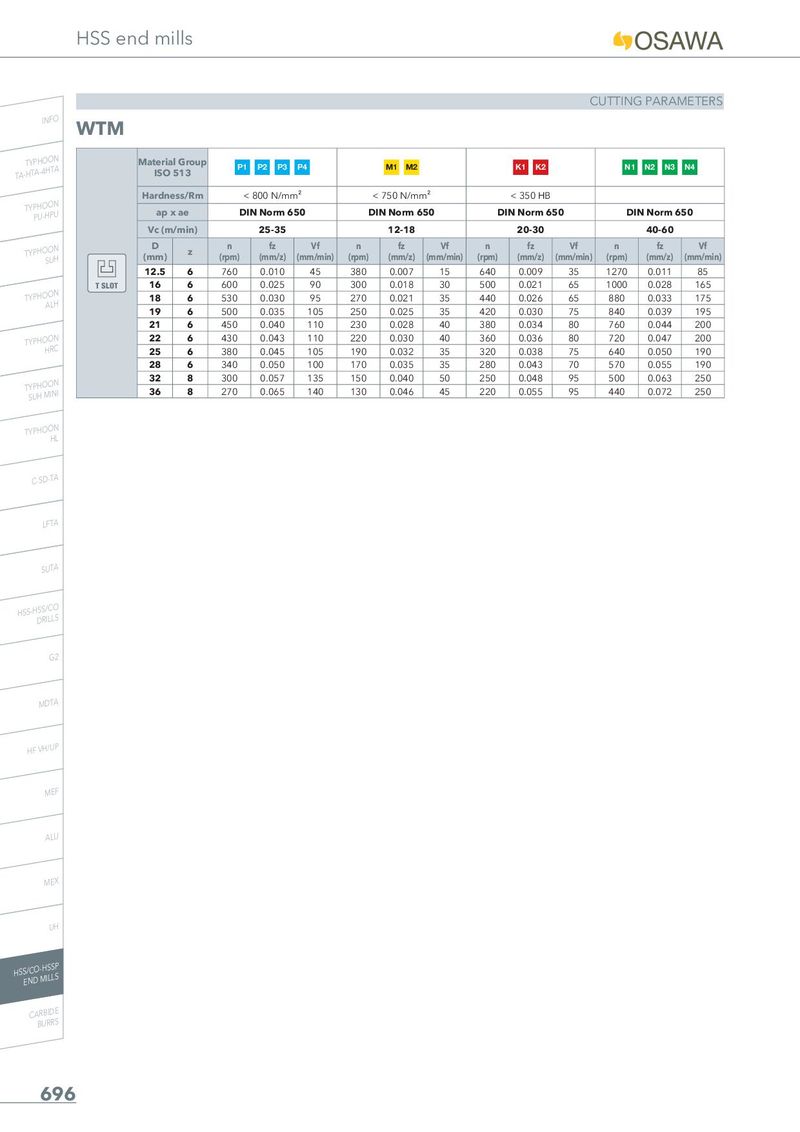

CUTTING PARAMETERS

INFO WTM

M	aterial ISO 5	Group 13	P1	P2 P3	P4		M1 M2			K1 K2		N1	N2 N3	N4
H	ardne	ss/Rm		800 N/mm	²		750 N/mm	²		< 350 HB
	ap x	ae	DI	N Norm 6	50	DI	N Norm 6	50	DI	N Norm 6	50	DI	N Norm 6	50
	Vc (m/	min)		25-35			12-18			20-30			40-60
(	D mm)	z	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	12.5	6	760	0.010	45	380	0.007	15	640	0.009	35	1270	0.011	85
T SLOT	16	6	600	0.025	90	300	0.018	30	500	0.021	65	1000	0.028	165
	18	6	530	0.030	95	270	0.021	35	440	0.026	65	880	0.033	175
	19	6	500	0.035	105	250	0.025	35	420	0.030	75	840	0.039	195
	21	6	450	0.040	110	230	0.028	40	380	0.034	80	760	0.044	200
	22	6	430	0.043	110	220	0.030	40	360	0.036	80	720	0.047	200
	25	6	380	0.045	105	190	0.032	35	320	0.038	75	640	0.050	190
	28	6	340	0.050	100	170	0.035	35	280	0.043	70	570	0.055	190
	32	8	300	0.057	135	150	0.040	50	250	0.048	95	500	0.063	250
	36	8	270	0.065	140	130	0.046	45	220	0.055	95	440	0.072	250
