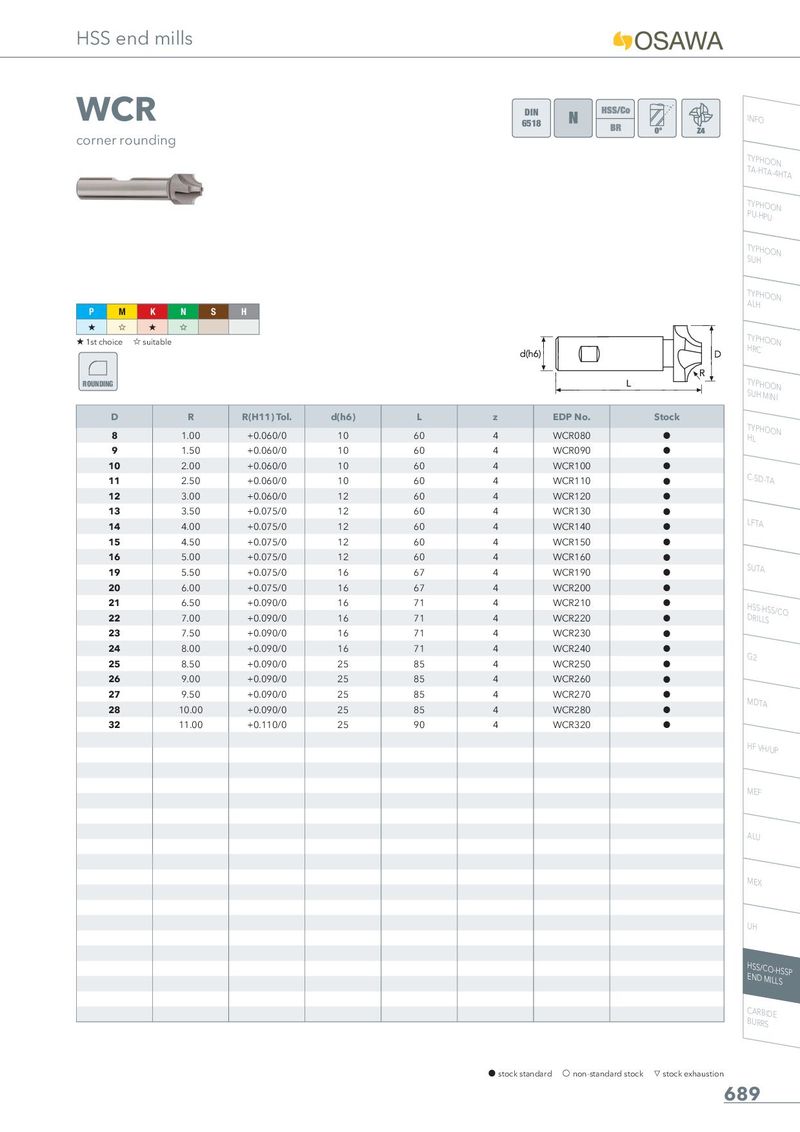

WCR
corner rounding
DIN 6518
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| P M K | N S | H | |||||
| � � � | � | ||||||
| �1st choice�sui | table | ||||||
| ROUNDING | |||||||
| D | R | R(H11) Tol. | d(h6) | L | z | EDP No. | Stock |
| 8 | 1.00 | +0.060/0 | 10 | 60 | 4 | WCR080 | h |
| 9 | 1.50 | +0.060/0 | 10 | 60 | 4 | WCR090 | h |
| 10 | 2.00 | +0.060/0 | 10 | 60 | 4 | WCR100 | h |
| 11 | 2.50 | +0.060/0 | 10 | 60 | 4 | WCR110 | h |
| 12 | 3.00 | +0.060/0 | 12 | 60 | 4 | WCR120 | h |
| 13 | 3.50 | +0.075/0 | 12 | 60 | 4 | WCR130 | h |
| 14 | 4.00 | +0.075/0 | 12 | 60 | 4 | WCR140 | h |
| 15 | 4.50 | +0.075/0 | 12 | 60 | 4 | WCR150 | h |
| 16 | 5.00 | +0.075/0 | 12 | 60 | 4 | WCR160 | h |
| 19 | 5.50 | +0.075/0 | 16 | 67 | 4 | WCR190 | h |
| 20 | 6.00 | +0.075/0 | 16 | 67 | 4 | WCR200 | h |
| 21 | 6.50 | +0.090/0 | 16 | 71 | 4 | WCR210 | h |
| 22 | 7.00 | +0.090/0 | 16 | 71 | 4 | WCR220 | h |
| 23 | 7.50 | +0.090/0 | 16 | 71 | 4 | WCR230 | h |
| 24 | 8.00 | +0.090/0 | 16 | 71 | 4 | WCR240 | h |
| 25 | 8.50 | +0.090/0 | 25 | 85 | 4 | WCR250 | h |
| 26 | 9.00 | +0.090/0 | 25 | 85 | 4 | WCR260 | h |
| 27 | 9.50 | +0.090/0 | 25 | 85 | 4 | WCR270 | h |
| 28 | 10.00 | +0.090/0 | 25 | 85 | 4 | WCR280 | h |
| 32 | 11.00 | +0.110/0 | 25 | 90 | 4 | WCR320 | h |
