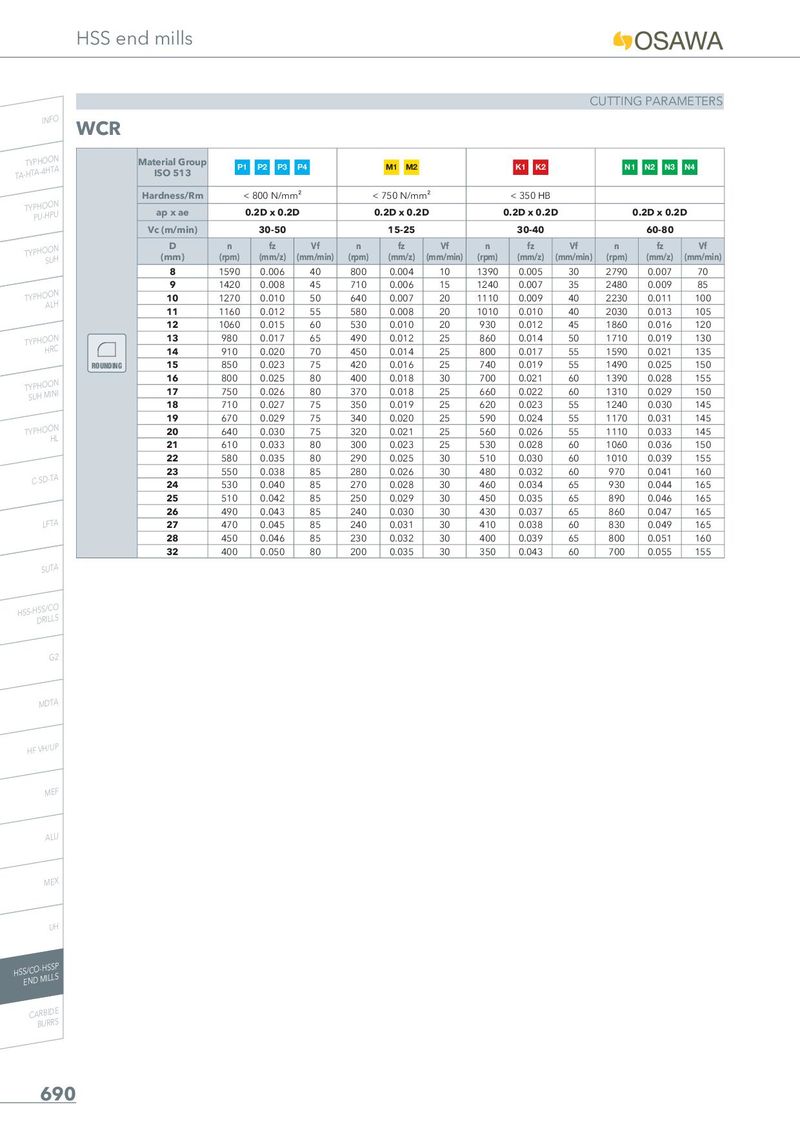

CUTTING PARAMETERS

INFO WCR

Material Group ISO 513	P1	P2 P3	P4		M1 M2			K1 K2		N1	N2 N3	N4
Hardness/Rm		800 N/mm	²		750 N/mm	²		< 350 HB
ap x ae	0	.2D x 0.2	D	0	.2D x 0.2D		0	.2D x 0.2D		0	.2D x 0.2	D
Vc (m/min)		30-50			15-25			30-40			60-80
D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
8	1590	0.006	40	800	0.004	10	1390	0.005	30	2790	0.007	70
9	1420	0.008	45	710	0.006	15	1240	0.007	35	2480	0.009	85
10	1270	0.010	50	640	0.007	20	1110	0.009	40	2230	0.011	100
11	1160	0.012	55	580	0.008	20	1010	0.010	40	2030	0.013	105
12	1060	0.015	60	530	0.010	20	930	0.012	45	1860	0.016	120
13	980	0.017	65	490	0.012	25	860	0.014	50	1710	0.019	130
14	910	0.020	70	450	0.014	25	800	0.017	55	1590	0.021	135
ROUNDING 15	850	0.023	75	420	0.016	25	740	0.019	55	1490	0.025	150
16	800	0.025	80	400	0.018	30	700	0.021	60	1390	0.028	155
17	750	0.026	80	370	0.018	25	660	0.022	60	1310	0.029	150
18	710	0.027	75	350	0.019	25	620	0.023	55	1240	0.030	145
19	670	0.029	75	340	0.020	25	590	0.024	55	1170	0.031	145
20	640	0.030	75	320	0.021	25	560	0.026	55	1110	0.033	145
21	610	0.033	80	300	0.023	25	530	0.028	60	1060	0.036	150
22	580	0.035	80	290	0.025	30	510	0.030	60	1010	0.039	155
23	550	0.038	85	280	0.026	30	480	0.032	60	970	0.041	160
24	530	0.040	85	270	0.028	30	460	0.034	65	930	0.044	165
25	510	0.042	85	250	0.029	30	450	0.035	65	890	0.046	165
26	490	0.043	85	240	0.030	30	430	0.037	65	860	0.047	165
27	470	0.045	85	240	0.031	30	410	0.038	60	830	0.049	165
28	450	0.046	85	230	0.032	30	400	0.039	65	800	0.051	160
32	400	0.050	80	200	0.035	30	350	0.043	60	700	0.055	155
