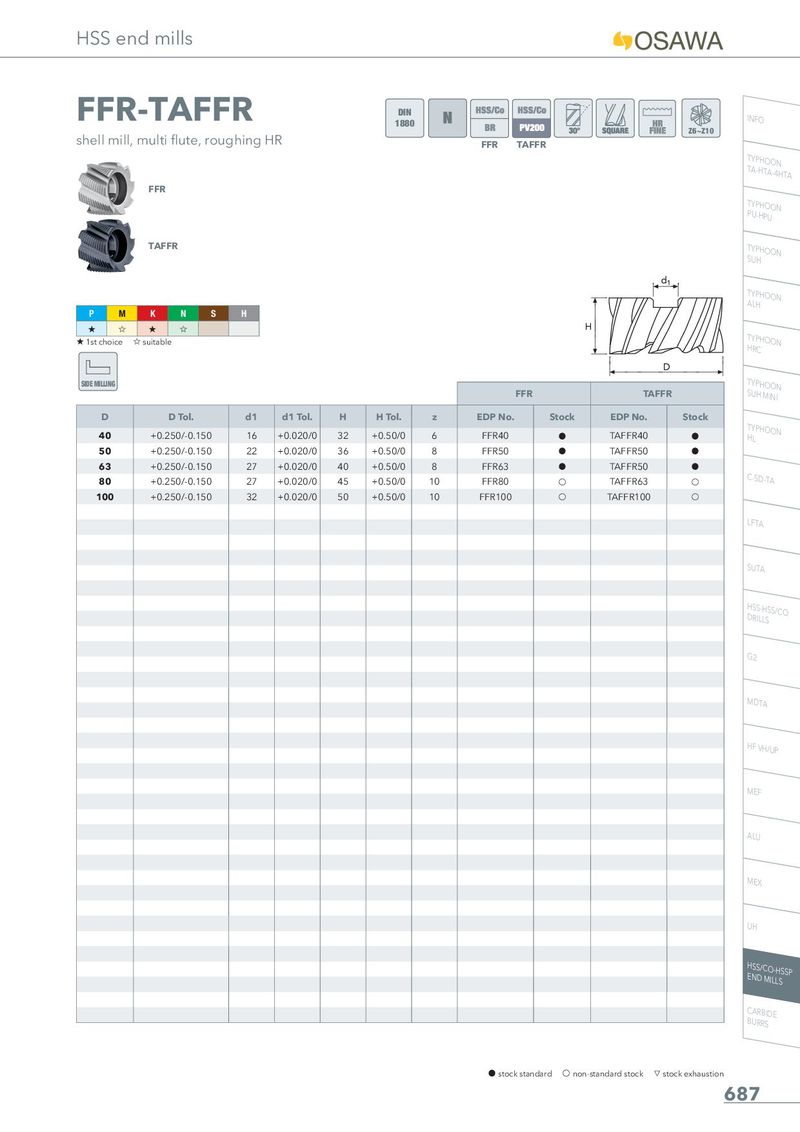

Общий каталог Osawa 2018 - страница 689
Навигация
Общий каталог Osawa 2021
FFR-TAFFR
DIN 1880 Z6~Z10
shell mill, multi flute, roughing HR
FFR TAFFR
FFR
TAFFR
P M K N S H
1st choice suitable
SIDE MILLING FFR TAFFR
| D | D Tol. d1 | d1 Tol. | H | H Tol. | z | EDP No. | Stock | EDP No. | Stock | |
| 40 | +0.250/-0.150 | 16 | +0.020/0 | 32 | +0.50/0 | 6 | FFR40 | h | TAFFR40 | h |
| 50 | +0.250/-0.150 | 22 | +0.020/0 | 36 | +0.50/0 | 8 | FFR50 | h | TAFFR50 | h |
| 63 | +0.250/-0.150 | 27 | +0.020/0 | 40 | +0.50/0 | 8 | FFR63 | h | TAFFR50 | h |
| 80 | +0.250/-0.150 | 27 | +0.020/0 | 45 | +0.50/0 | 10 | FFR80 | f | TAFFR63 | f |
| 100 | +0.250/-0.150 | 32 | +0.020/0 | 50 | +0.50/0 | 10 | FFR100 | f | TAFFR100 | f |
