TYPHOON TA-HTA-4HTA

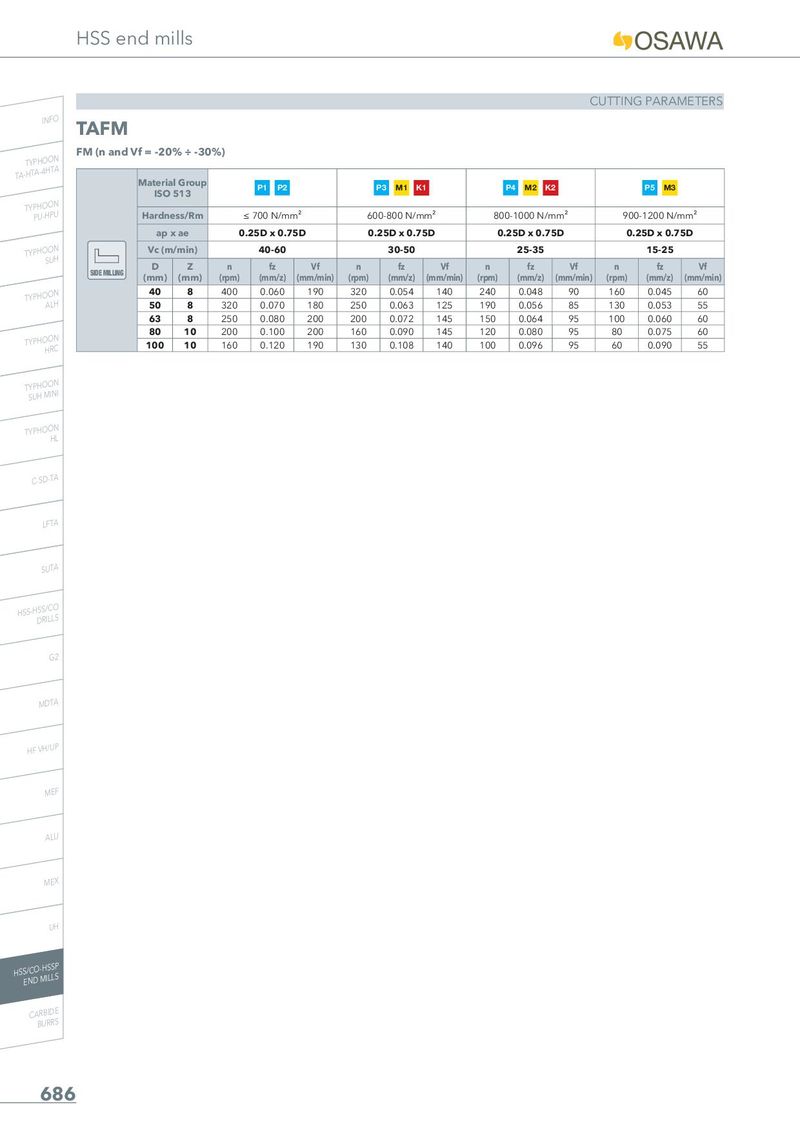

CUTTING PARAMETERS

TAFM

FM (n and Vf = -20% ÷ -30%)

M	ateria ISO	l Group 513		P1 P2			P3 M1 K	1		P4 M2 K	2		P5 M3
H	ardne	ss/Rm	≤	700 N/m	m²	60	0-800 N/m	m²	80	0-1000 N/m	m²	90	0-1200 N/	mm²
	ap	x ae	0.	25D x 0.7	5D	0.	25D x 0.7	5D	0.	25D x 0.7	5D	0.	25D x 0.7	5D
	Vc (m	/min)		40-60			30-50			25-35			15-25
SIDE MILLING (	D mm)	Z (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	40	8	400	0.060	190	320	0.054	140	240	0.048	90	160	0.045	60
	50	8	320	0.070	180	250	0.063	125	190	0.056	85	130	0.053	55
	63	8	250	0.080	200	200	0.072	145	150	0.064	95	100	0.060	60
	80	10	200	0.100	200	160	0.090	145	120	0.080	95	80	0.075	60
	100	10	160	0.120	190	130	0.108	140	100	0.096	95	60	0.090	55
