Общий каталог Osawa 2021

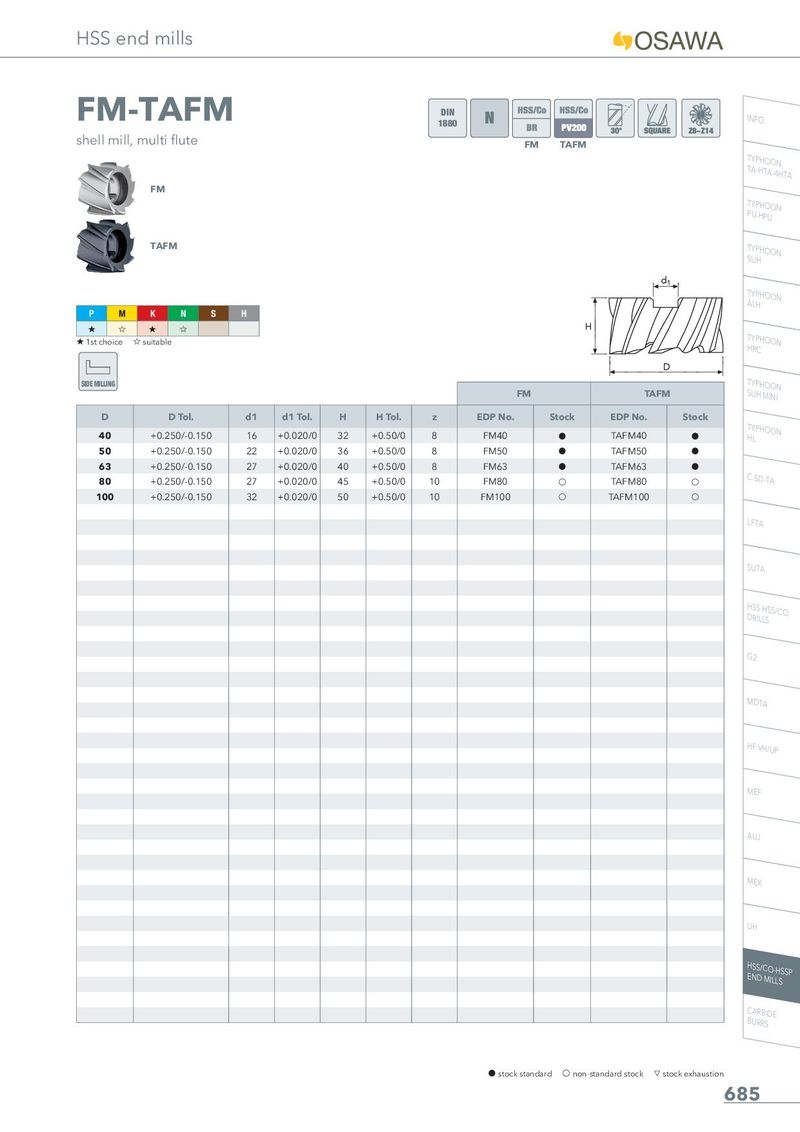

FM-TAFM
DIN 1880
shell mill, multi flute
FM TAFM
FM
TAFM
P M K N S H
1st choice suitable
SIDE MILLING FM TAFM
| D | D Tol. d1 | d1 Tol. | H | H Tol. | z | EDP No. | Stock | EDP No. | Stock | |
| 40 | +0.250/-0.150 | 16 | +0.020/0 | 32 | +0.50/0 | 8 | FM40 | h | TAFM40 | h |
| 50 | +0.250/-0.150 | 22 | +0.020/0 | 36 | +0.50/0 | 8 | FM50 | h | TAFM50 | h |
| 63 | +0.250/-0.150 | 27 | +0.020/0 | 40 | +0.50/0 | 8 | FM63 | h | TAFM63 | h |
| 80 | +0.250/-0.150 | 27 | +0.020/0 | 45 | +0.50/0 | 10 | FM80 | f | TAFM80 | f |
| 100 | +0.250/-0.150 | 32 | +0.020/0 | 50 | +0.50/0 | 10 | FM100 | f | TAFM100 | f |
