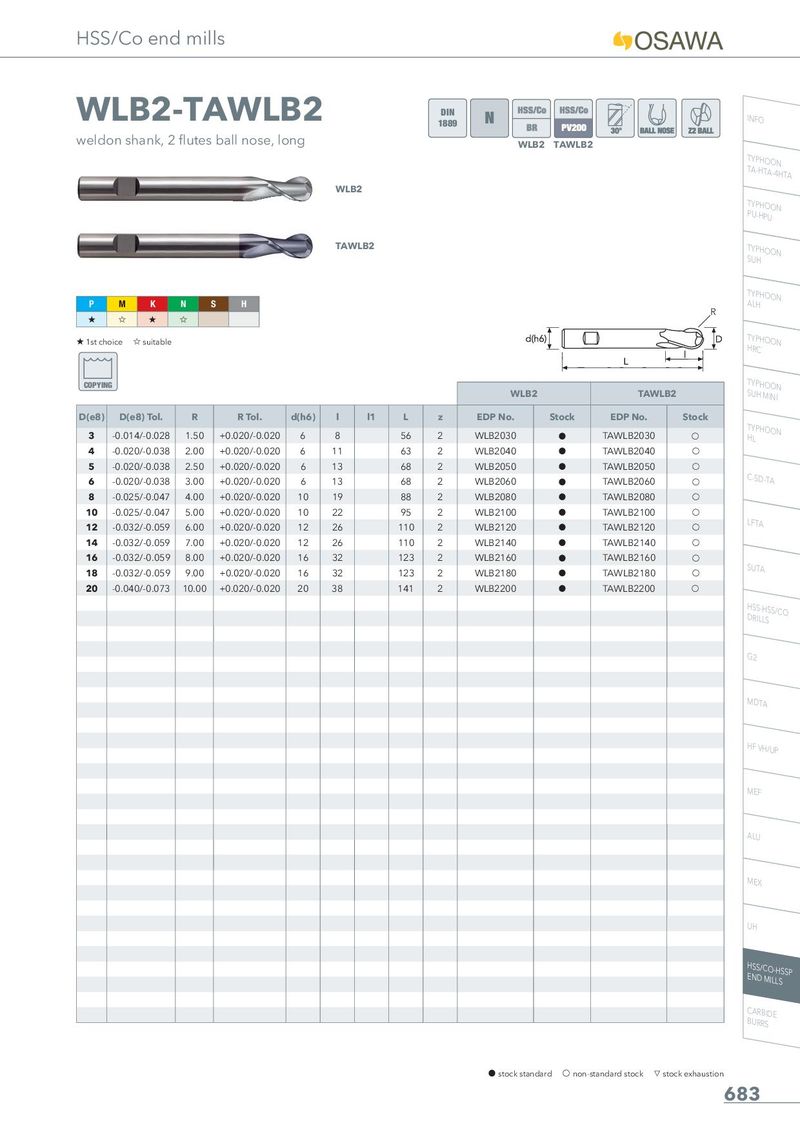

WLB2-TAWLB2

DIN 1889

weldon shank, 2 flutes ball nose, long

WLB2 TAWLB2

WLB2

TAWLB2

P M K N S H

R

1st choice suitable

COPYING WLB2 TAWLB2

D(e8)	D(e8) Tol.	R		R Tol. d(h6)	l	l1 L	z	EDP No.	Stock	EDP No.	Stock
3	-0.014/-0.028	1.50	+0.020/-0.020	6	8	56	2	WLB2030	h	TAWLB2030	f
4	-0.020/-0.038	2.00	+0.020/-0.020	6	11	63	2	WLB2040	h	TAWLB2040	f
5	-0.020/-0.038	2.50	+0.020/-0.020	6	13	68	2	WLB2050	h	TAWLB2050	f
6	-0.020/-0.038	3.00	+0.020/-0.020	6	13	68	2	WLB2060	h	TAWLB2060	f
8	-0.025/-0.047	4.00	+0.020/-0.020	10	19	88	2	WLB2080	h	TAWLB2080	f
10	-0.025/-0.047	5.00	+0.020/-0.020	10	22	95	2	WLB2100	h	TAWLB2100	f
12	-0.032/-0.059	6.00	+0.020/-0.020	12	26	110	2	WLB2120	h	TAWLB2120	f
14	-0.032/-0.059	7.00	+0.020/-0.020	12	26	110	2	WLB2140	h	TAWLB2140	f
16	-0.032/-0.059	8.00	+0.020/-0.020	16	32	123	2	WLB2160	h	TAWLB2160	f
18	-0.032/-0.059	9.00	+0.020/-0.020	16	32	123	2	WLB2180	h	TAWLB2180	f
20	-0.040/-0.073	10.00	+0.020/-0.020	20	38	141	2	WLB2200	h	TAWLB2200	f
