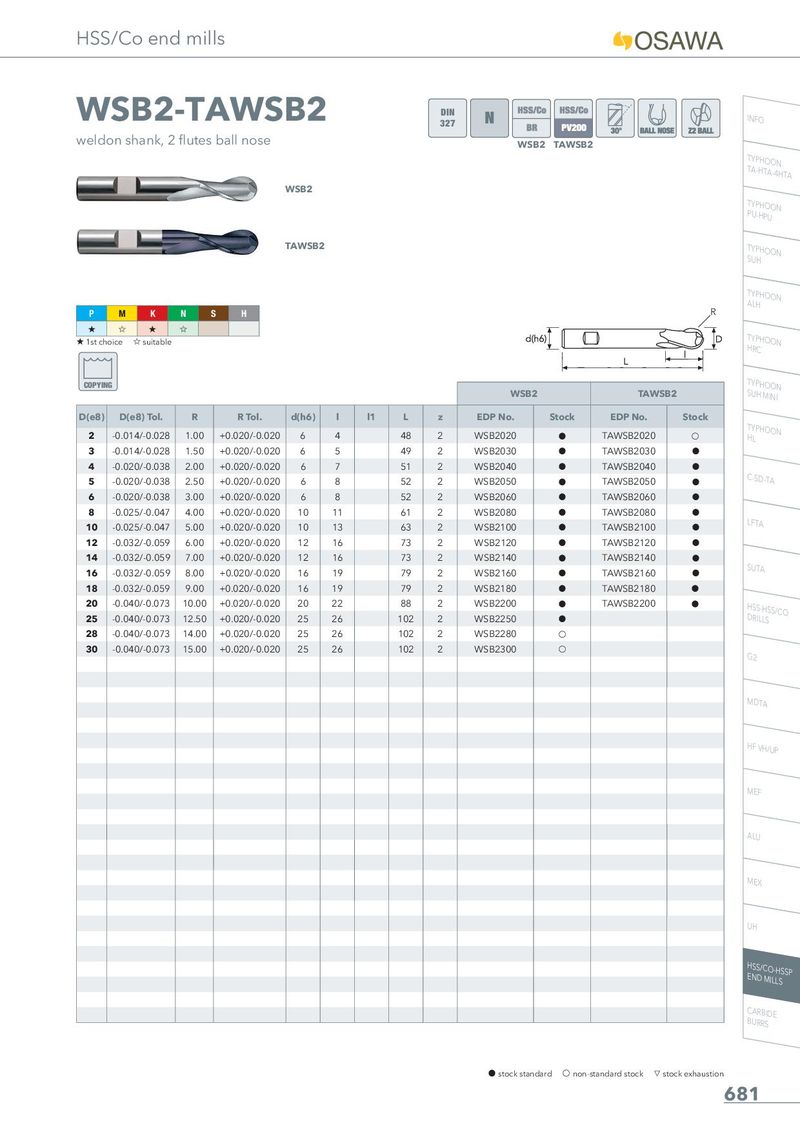

WSB2-TAWSB2

weldon shank, 2 flutes ball nose

WSB2

TAWSB2

DIN 327

WSB2 TAWSB2

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

P � �1st ch	M K � � oice�suitable	N S �	H
COPYIN	G								WSB	2	TAWS	B2
D(e8)	D(e8) Tol.	R	R Tol.	d(h6)	l	l1	L	z	EDP No.	Stock	EDP No.	Stock
2	-0.014/-0.028	1.00	+0.020/-0.020	6	4		48	2	WSB2020	h	TAWSB2020	f
3	-0.014/-0.028	1.50	+0.020/-0.020	6	5		49	2	WSB2030	h	TAWSB2030	h
4	-0.020/-0.038	2.00	+0.020/-0.020	6	7		51	2	WSB2040	h	TAWSB2040	h
5	-0.020/-0.038	2.50	+0.020/-0.020	6	8		52	2	WSB2050	h	TAWSB2050	h
6	-0.020/-0.038	3.00	+0.020/-0.020	6	8		52	2	WSB2060	h	TAWSB2060	h
8	-0.025/-0.047	4.00	+0.020/-0.020	10	11		61	2	WSB2080	h	TAWSB2080	h
10	-0.025/-0.047	5.00	+0.020/-0.020	10	13		63	2	WSB2100	h	TAWSB2100	h
12	-0.032/-0.059	6.00	+0.020/-0.020	12	16		73	2	WSB2120	h	TAWSB2120	h
14	-0.032/-0.059	7.00	+0.020/-0.020	12	16		73	2	WSB2140	h	TAWSB2140	h
16	-0.032/-0.059	8.00	+0.020/-0.020	16	19		79	2	WSB2160	h	TAWSB2160	h
18	-0.032/-0.059	9.00	+0.020/-0.020	16	19		79	2	WSB2180	h	TAWSB2180	h
20	-0.040/-0.073	10.00	+0.020/-0.020	20	22		88	2	WSB2200	h	TAWSB2200	h
25	-0.040/-0.073	12.50	+0.020/-0.020	25	26		102	2	WSB2250	h
28	-0.040/-0.073	14.00	+0.020/-0.020	25	26		102	2	WSB2280	f
30	-0.040/-0.073	15.00	+0.020/-0.020	25	26		102	2	WSB2300	f

HRC

TYPHOON

C-SD-TA

LFTA

SUTA

G2

MDTA

HF VH/UP

MEF

ALU

MEX

UH

HSS/CO-HSSP END MILLS

CARBIDE BURRS
