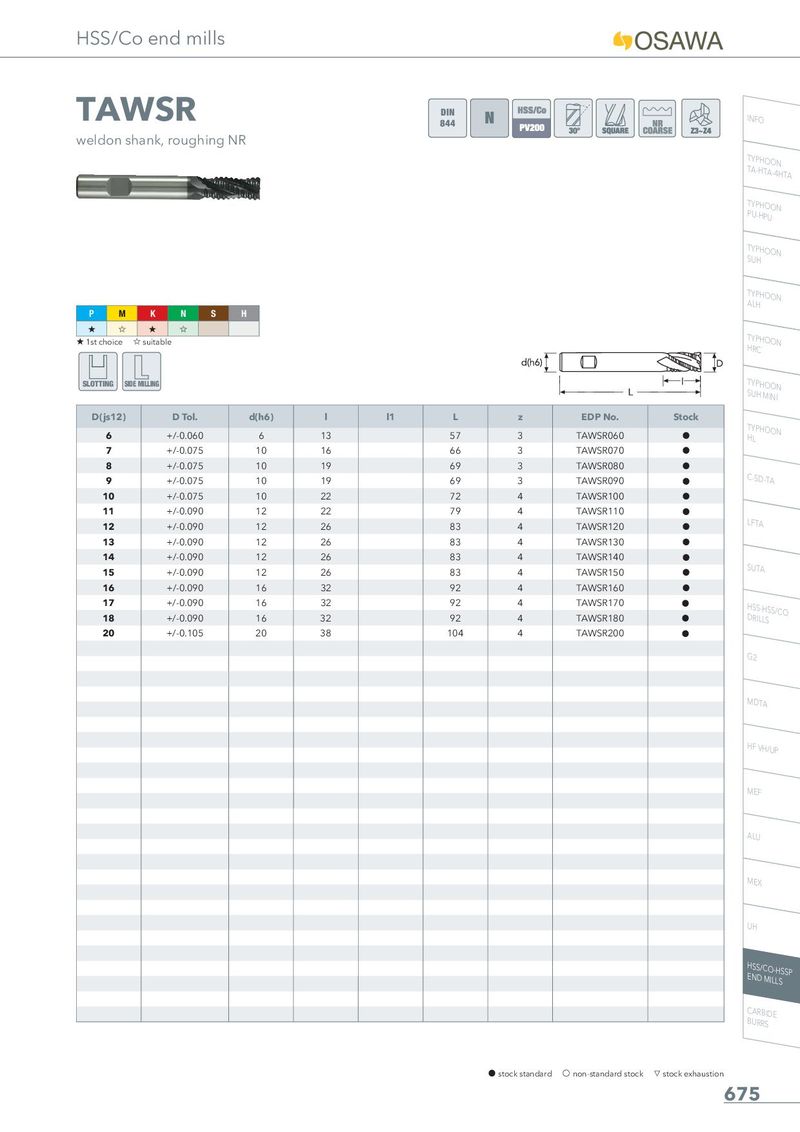

TAWSR
weldon shank, roughing NR
DIN 844
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| P M | K N S | H | ||||||
| � � | � � | |||||||
| �1st choice� | suitable | |||||||
| SLOTTING SIDE | MILLING | |||||||
| D(js12) | D Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 6 | +/-0.060 | 6 | 13 | 57 | 3 | TAWSR060 | h | |
| 7 | +/-0.075 | 10 | 16 | 66 | 3 | TAWSR070 | h | |
| 8 | +/-0.075 | 10 | 19 | 69 | 3 | TAWSR080 | h | |
| 9 | +/-0.075 | 10 | 19 | 69 | 3 | TAWSR090 | h | |
| 10 | +/-0.075 | 10 | 22 | 72 | 4 | TAWSR100 | h | |
| 11 | +/-0.090 | 12 | 22 | 79 | 4 | TAWSR110 | h | |
| 12 | +/-0.090 | 12 | 26 | 83 | 4 | TAWSR120 | h | |
| 13 | +/-0.090 | 12 | 26 | 83 | 4 | TAWSR130 | h | |
| 14 | +/-0.090 | 12 | 26 | 83 | 4 | TAWSR140 | h | |
| 15 | +/-0.090 | 12 | 26 | 83 | 4 | TAWSR150 | h | |
| 16 | +/-0.090 | 16 | 32 | 92 | 4 | TAWSR160 | h | |
| 17 | +/-0.090 | 16 | 32 | 92 | 4 | TAWSR170 | h | |
| 18 | +/-0.090 | 16 | 32 | 92 | 4 | TAWSR180 | h | |
| 20 | +/-0.105 | 20 | 38 | 104 | 4 | TAWSR200 | h |
